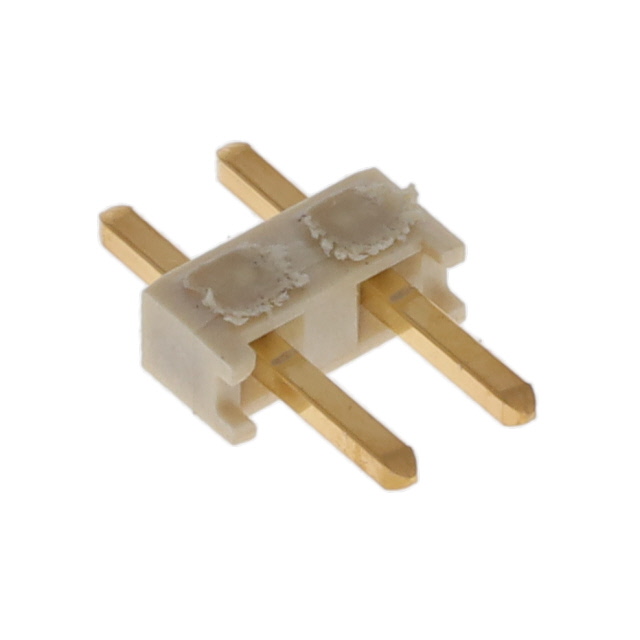

HTSW-101-05-G-D

Manufacturer :

Samtec, Inc.

Product Category :

Headers, Male Pins

Contact Material :

Phosphor Bronze

Published :

2005

Radiation Hardening :

No

Packaging :

Bulk

Termination :

Solder

Number Of PCB Rows :

2

Insulation Color :

Natural

Lead Pitch :

2.54mm

Mount :

Through Hole

Body Depth :

0.1 inch

Current Rating (Amps) :

Varies by WireGAuge

JESD-609 Code :

e4

Factory Lead Time :

3 Weeks

Material Flammability Rating :

UL94 V-0

Fastening Type :

Push-Pull

Overall Contact Length :

0.335 8.51mm

Body Length or Diameter :

0.1 inch

Contact Finish Thickness - Post :

3.00μin 0.076μm

Pbfree Code :

yes

Option :

GENERAL PURPOSE

Series :

HTSW

Insulation Height :

0.100 2.54mm

Style :

Board to Board or Cable

Moisture Sensitivity Level (MSL) :

Not Applicable

Contact Shape :

Square

Contact Type :

Male Pin

Filter Feature :

No

Insulation Material :

Liquid Crystal Polymer (LCP)

Mixed Contacts :

No

Shrouding :

Unshrouded

Number of Conductors :

ONE

Connector Type :

Header

DIN Conformance :

No

Number of Rows :

2

IEC Conformance :

No

REACH SVHC :

No SVHC

RoHS Status :

ROHS3 Compliant

Row Spacing - Mating :

0.100 (2.54mm)

Number of Positions :

2

Mounting Type :

Through Hole

Reliability :

COMMERCIAL

PCB Contact Pattern :

RECTANGULAR

Body Breadth :

0.198 inch

Contact Finish - Mating :

Gold

MIL Conformance :

No

Contact Length - Post :

0.130 3.30mm

Contact Length - Mating :

0.105 2.67mm

Operating Temperature :

-55°C~125°C

Contact Finish Thickness - Mating :

10.0μin 0.25μm

Gender :

Male

Number of Positions Loaded :

All
