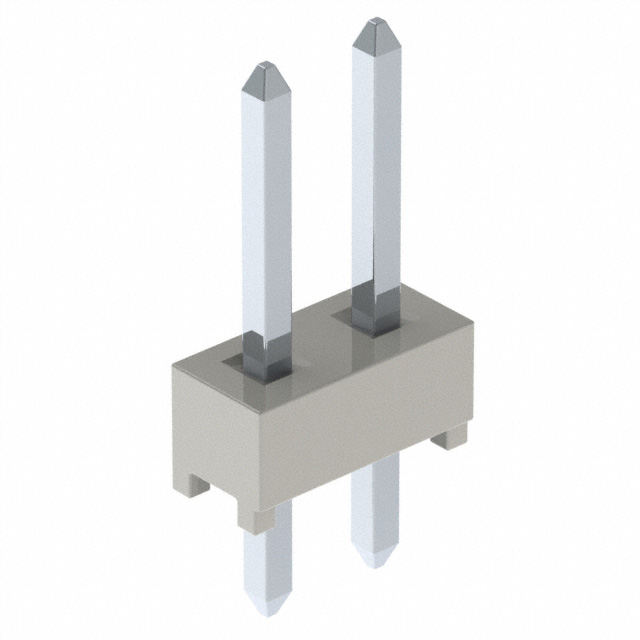

HTSW-101-07-TM-D

Manufacturer :

Samtec, Inc.

Product Category :

Headers, Male Pins

Gender :

Male

Fastening Type :

Push-Pull

Number Of PCB Rows :

2

Mounting Type :

Through Hole

Current Rating (Amps) :

Varies by WireGAuge

UL Flammability Code :

94V-0

Body Depth :

0.1 inch

ECCN Code :

EAR99

Overall Contact Length :

0.430 10.92mm

Insulation Material :

Liquid Crystal Polymer (LCP)

Material Flammability Rating :

UL94 V-0

Mixed Contacts :

No

RoHS Status :

ROHS3 Compliant

Option :

GENERAL PURPOSE

Contact Shape :

Square

Factory Lead Time :

3 Weeks

Series :

HTSW

Insulation Color :

Natural

Insulation Height :

0.100 2.54mm

MIL Conformance :

No

Style :

Board to Board or Cable

Reliability :

COMMERCIAL

Contact Length - Post :

0.100 2.54mm

Body Breadth :

0.198 inch

Radiation Hardening :

No

Connector Type :

Header

Contact Finish - Mating :

Tin

Packaging :

Bulk

DIN Conformance :

No

Number of Positions Loaded :

All

Contact Length - Mating :

0.230 5.84mm

Contact Material :

Phosphor Bronze

Termination :

Solder

IEC Conformance :

No

Published :

2016

Number of Rows :

2

HTS Code :

8536.69.40.40

Number of Positions :

2

Operating Temperature :

-55°C~105°C

Body Length or Diameter :

0.1 inch

Row Spacing - Mating :

0.100 (2.54mm)

Contact Type :

Male Pin

Moisture Sensitivity Level (MSL) :

Not Applicable

PCB Contact Pattern :

RECTANGULAR

Shrouding :

Unshrouded

Mount :

Through Hole

Number of Conductors :

ONE

Filter Feature :

No
