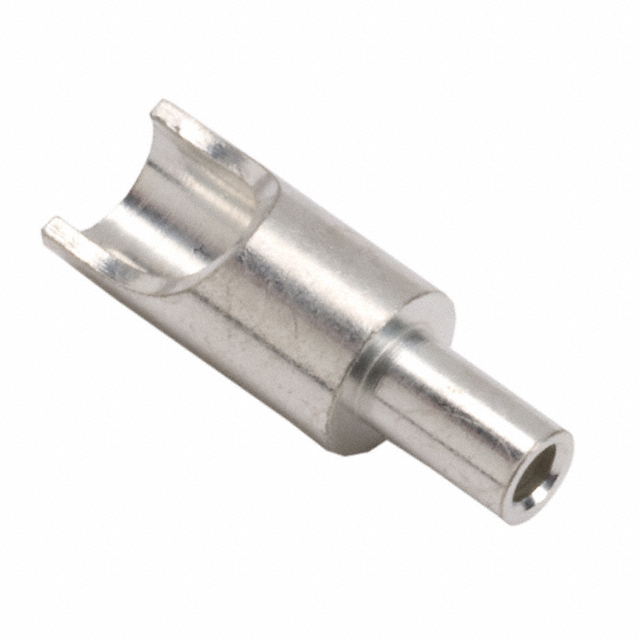

H9026-01
Or copy the link below:
- Mfr.Part #
- H9026-01
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN TERM WTB TIN
- Stock
- 10,188
- In Stock ：
- 10,188
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Wire to Board Connectors
- Lead Length :
- 6.35mm
- Radiation Hardening :
- No
- ECCN Code :
- EAR99
- Connector Type :
- PCB, Turret
- RoHS Status :
- ROHS3 Compliant
- Hole Diameter :
- 0.072 ~ 0.076 (1.83mm ~ 1.93mm)
- HTS Code :
- 8536.90.40.00
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Hole Diameter :
- 1.92 mm
- Factory Lead Time :
- 9 Weeks
- Pbfree Code :
- yes
- Termination :
- Through Hole
- Terminal Type :
- Through Board
- Terminal and Terminal Block Type :
- PCB TERMINAL
- Outside Diameter :
- 3.18 mm
- Contact Material :
- Brass
- Board Thickness :
- 2.4mm
- Mount :
- Through Hole
- Color :
- Grey
- REACH SVHC :
- No SVHC
- Depth :
- 3.18mm
- Contact Finish :
- Tin
- Published :
- 2009
- Packaging :
- Bulk
- Length - Overall :
- 0.375 9.53mm
- Wire/Cable Gauge :
- 18 AWG
- Gender :
- FEMALE
- Length :
- 9.525mm
- Datasheets
- H9026-01
