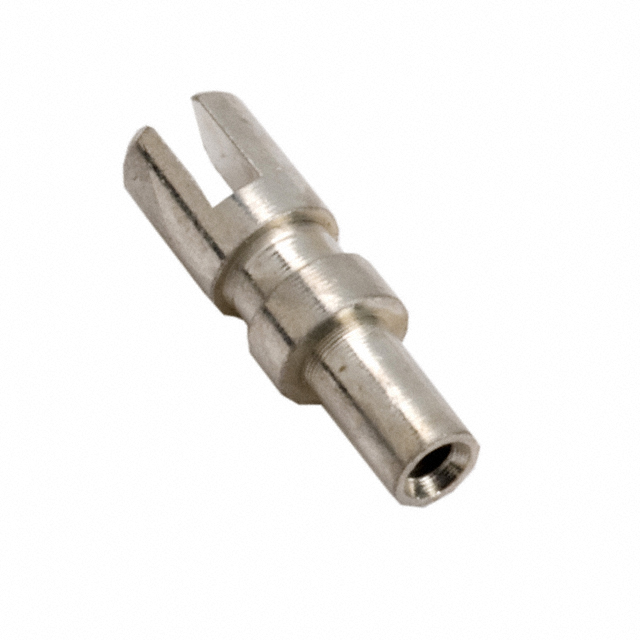

H9023-01

Manufacturer :

Harwin

Product Category :

Turret Connectors

Connector Type :

Turret

Terminal Type :

Single End, Fork, Hollow

Insulation :

Non-Insulated

Length - Above Board :

0.156 3.96mm

Board Thickness :

0.063 1.60mm

ECCN Code :

EAR99

Staking Side ID :

0.039 (1.00mm)

Mounting Hole Diameter :

0.050 ~ 0.054 (1.27mm ~ 1.37mm)

HTS Code :

8536.90.40.00

Outside Diameter :

1.83 mm

Length - Below Flange :

0.082 2.08mm

Diameter - Inside :

1.19 mm

Published :

2011

Reach Compliance Code :

not_compliant

Mount :

Through Hole

Length :

6.0452mm

Mounting Type :

Through Hole

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Terminal and Terminal Block Type :

PCB TERMINAL

Lead Length :

3.95mm

Pbfree Code :

yes

Depth :

1.83mm

Length - Overall :

0.238 6.04mm

Color :

Grey

Hole Diameter :

1.3716 mm

Factory Lead Time :

9 Weeks

Contact Finish :

Tin

Body Material :

Brass

Wire/Cable Gauge :

18 AWG

Termination :

Swage

REACH SVHC :

No SVHC

Flange Diameter :

0.072 (1.83mm)

RoHS Status :

ROHS3 Compliant

Number of Turrets :

Single

Contact Material :

Brass Alloy
