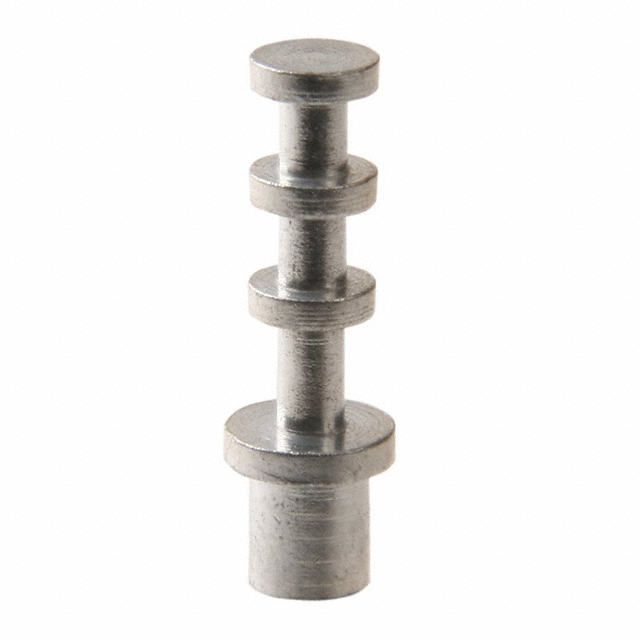

H9020-01
Or copy the link below:
- Mfr.Part #
- H9020-01
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- TERM TURRET SINGLE L=7.65MM TIN
- Stock
- 5
- In Stock ：
- 5
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Turret Connectors
- Wire Cross Section :
- 115.69 mm2
- HTS Code :
- 8536.90.40.00
- Mount :
- Through Hole
- Length - Below Flange :
- 0.094 2.39mm
- Contact Material :
- Brass Alloy
- Length :
- 10.033mm
- Insulation :
- Non-Insulated
- Connector Type :
- Turret
- Flange Diameter :
- 0.125 (3.18mm)
- REACH SVHC :
- No SVHC
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Board Thickness :
- 0.063 1.60mm
- Number of Turrets :
- Triple
- Diameter - Turret Head :
- 0.093 (2.36mm)
- Pbfree Code :
- yes
- Staking Side ID :
- 0.064 (1.63mm)
- Published :
- 2001
- Contact Plating :
- Tin
- Length - Above Board :
- 0.301 7.65mm
- Reach Compliance Code :
- not_compliant
- Body Material :
- Brass
- Lead Length :
- 7.65mm
- Terminal and Terminal Block Type :
- PCB TERMINAL
- Mounting Type :
- Through Hole
- ECCN Code :
- EAR99
- Terminal Type :
- Single End
- Depth :
- 3.18mm
- Termination :
- Swage
- Gender :
- FEMALE
- Hole Diameter :
- 2.4384 mm
- Length - Overall :
- 0.395 10.03mm
- Mounting Hole Diameter :
- 0.092 ~ 0.096 (2.34mm ~ 2.44mm)
- RoHS Status :
- ROHS3 Compliant
- Factory Lead Time :
- 9 Weeks
- Datasheets
- H9020-01
