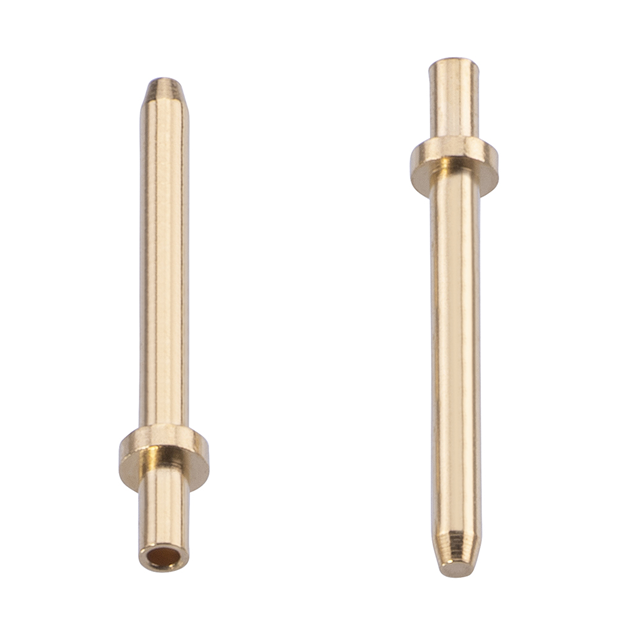

H2176-05
Or copy the link below:
- Mfr.Part #
- H2176-05
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN PC PIN CIRC 0.041DIA GOLD
- Stock
- 22,758
- In Stock ：
- 22,758
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- PC Pin, Single Post Connectors
- Length :
- 11.6078mm
- Termination :
- Swage
- Pbfree Code :
- yes
- Packaging :
- Bulk
- Mounting Type :
- Through Hole
- Length - Above Flange :
- 0.355 9.02mm
- Pin Size - Above Flange :
- 0.041 1.04mm Dia
- Length - Overall :
- 0.457 11.61mm
- RoHS Status :
- ROHS3 Compliant
- Terminal Style :
- Single End
- Board Thickness :
- 0.063 1.60mm
- Mount :
- Through Hole
- Flange Diameter :
- 0.070 (1.77mm)
- Hole Diameter :
- 1.143 mm
- Contact Plating :
- Gold
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Depth :
- 1.78mm
- Length - Below Flange :
- 0.082 2.08mm
- Published :
- 2001
- Gender :
- FEMALE
- Terminal Type :
- PC Pin
- Terminal and Terminal Block Type :
- PCB TERMINAL
- ECCN Code :
- EAR99
- Radiation Hardening :
- No
- Mounting Hole Diameter :
- 0.041 ~ 0.045 (1.04mm ~ 1.14mm)
- HTS Code :
- 8536.90.40.00
- Insulation :
- Non-Insulated
- Contact Material :
- Brass
- Factory Lead Time :
- 9 Weeks
- Datasheets
- H2176-05
