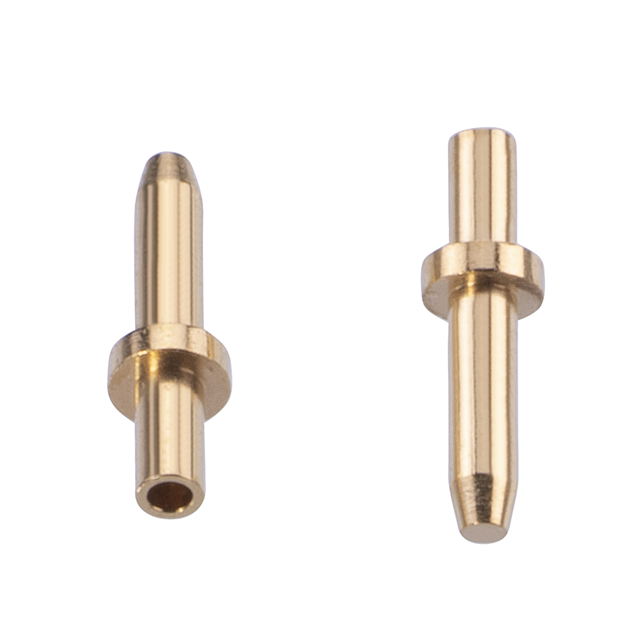

H2174-05
Or copy the link below:
- Mfr.Part #
- H2174-05
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN PC PIN CIRC 0.041DIA GOLD
- Stock
- 2,887
- In Stock ：
- 2,887
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- PC Pin, Single Post Connectors
- Hole Diameter :
- 1.143 mm
- Length - Below Flange :
- 0.082 2.08mm
- Length - Overall :
- 0.252 6.40mm
- Terminal Style :
- Single End
- Radiation Hardening :
- No
- DIN Conformance :
- No
- Depth :
- 1.78mm
- Published :
- 2001
- Packaging :
- Bulk
- Mounting Type :
- Through Hole
- Mount :
- Through Hole
- Flange Diameter :
- 0.070 (1.77mm)
- Contact Plating :
- Gold
- Assembly Item Name :
- Contact
- Pin Size - Above Flange :
- 0.041 1.04mm Dia
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Length :
- 6.4008mm
- Termination :
- Swage
- Finish Thickness :
- 0.0039
- Mounting Hole Diameter :
- 0.041 ~ 0.045 (1.04mm ~ 1.14mm)
- Length - Above Flange :
- 0.150 3.81mm
- IEC Conformance :
- No
- Pbfree Code :
- yes
- RoHS Status :
- ROHS3 Compliant
- Connector Support Type :
- TERMINAL ACCESSORY
- HTS Code :
- 8536.90.40.00
- Contact Style :
- ROUND PIN-SOCKET
- ECCN Code :
- EAR99
- Factory Lead Time :
- 9 Weeks
- Terminal Type :
- PC Pin
- Board Thickness :
- 0.063 1.60mm
- Contact Material :
- Brass
- Gender :
- FEMALE
- MIL Conformance :
- No
- Insulation :
- Non-Insulated
- Datasheets
- H2174-05
