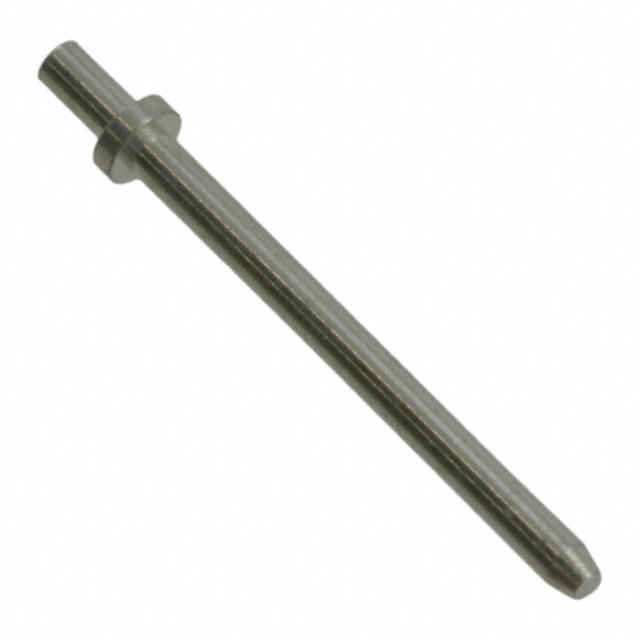

H2170-01
Or copy the link below:
- Mfr.Part #
- H2170-01
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN PC PIN CIRC 0.041DIA TIN
- Stock
- 2,204
- In Stock ：
- 2,204
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- PC Pin, Single Post Connectors
- HTS Code :
- 8536.90.40.00
- Insulation :
- Non-Insulated
- Pbfree Code :
- yes
- Factory Lead Time :
- 9 Weeks
- Contact Material :
- Brass
- Published :
- 2003
- Termination :
- Swage
- Terminal Type :
- PC Pin
- Pin Size - Above Flange :
- 0.041 1.04mm Dia
- Mount :
- Through Hole
- Length - Above Flange :
- 0.500 12.70mm
- Mounting Type :
- Through Hole
- Radiation Hardening :
- No
- Mounting Hole Diameter :
- 0.041 ~ 0.045 (1.04mm ~ 1.14mm)
- Lead Length :
- 13.2mm
- Gender :
- FEMALE
- Board Thickness :
- 0.063 1.60mm
- Length :
- 15.32mm
- Terminal Style :
- Single End
- Hole Diameter :
- 1.14 mm
- Flange Diameter :
- 0.070 (1.77mm)
- Contact Plating :
- Tin
- RoHS Status :
- ROHS3 Compliant
- Packaging :
- Bulk
- Length - Overall :
- 0.602 15.29mm
- Connector Type :
- Turret
- ECCN Code :
- EAR99
- Outside Diameter :
- 1.78 mm
- REACH SVHC :
- No SVHC
- Length - Below Flange :
- 0.082 2.08mm
- Depth :
- 1.78mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Terminal and Terminal Block Type :
- PCB TERMINAL
- Datasheets
- H2170-01
