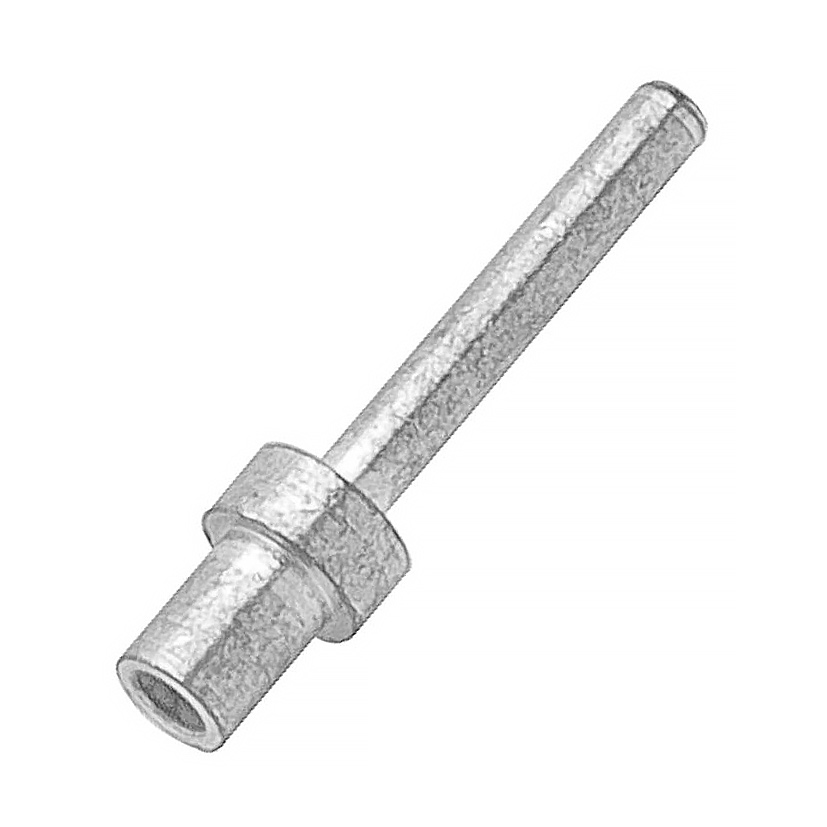

H2159-01
Or copy the link below:
- Mfr.Part #
- H2159-01
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN PC PIN CIRC .64DIA TIN/NICK
- Stock
- 1,551
- In Stock ：
- 1,551
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- PC Pin, Single Post Connectors
- Length :
- 6.096mm
- Length - Overall :
- 0.240 6.10mm
- Insulation :
- Non-Insulated
- Flange Diameter :
- 0.057 (1.45mm)
- HTS Code :
- 8536.90.40.00
- Mounting Hole Diameter :
- 0.042 ~ 0.045 (1.07mm ~ 1.14mm)
- Mounting Type :
- Through Hole
- Terminal Style :
- Single End
- Packaging :
- Bulk
- Hole Diameter :
- 1.143 mm
- Terminal Type :
- PC Pin
- Board Thickness :
- 0.031 0.79mm
- Contact Finish :
- Tin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination :
- Swage
- ECCN Code :
- EAR99
- Published :
- 2009
- Terminal and Terminal Block Type :
- PCB TERMINAL
- Length - Below Flange :
- 0.051 1.30mm
- Factory Lead Time :
- 14 Weeks
- Pin Size - Above Flange :
- 0.025 0.64mm Dia
- RoHS Status :
- ROHS3 Compliant
- Length - Above Flange :
- 0.165 4.18mm
- Pbfree Code :
- yes
- Contact Material :
- Brass
- Mount :
- Through Hole
- Datasheets
- H2159-01
H2159-01 datasheet pdf and Terminals - PC Pin, Single Post Connectors product details from Harwin Inc. stock available at Xinshop
