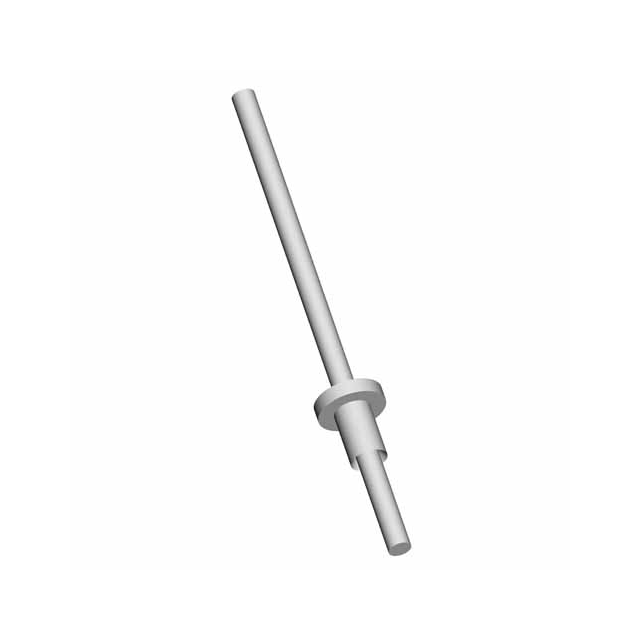

H2155-01
Or copy the link below:
- Mfr.Part #
- H2155-01
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN PC PIN CIRC 0.031DIA TIN
- Stock
- 47,826
- In Stock ：
- 47,826
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- PC Pin, Single Post Connectors
- HTS Code :
- 8536.90.40.00
- Length - Overall :
- 0.719 18.26mm
- Hole Diameter :
- 1.3716 mm
- Pin Size - Above Flange :
- 0.031 0.79mm Dia
- Terminal Type :
- PC Pin
- Terminal and Terminal Block Type :
- PCB TERMINAL
- Pbfree Code :
- yes
- Depth :
- 2.36mm
- Terminal Style :
- Double End
- ECCN Code :
- EAR99
- Termination :
- Swage
- Mount :
- Through Hole
- Gender :
- Male
- Contact Plating :
- Tin
- Radiation Hardening :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Bulk
- Mounting Type :
- Through Hole
- Length - Below Flange :
- 0.224 5.69mm
- Contact Material :
- Brass
- Flange Diameter :
- 0.093 (2.36mm)
- Insulation :
- Non-Insulated
- Length - Above Flange :
- 0.480 12.19mm
- Mounting Hole Diameter :
- 0.050 ~ 0.054 (1.27mm ~ 1.37mm)
- Board Thickness :
- 0.063 1.60mm
- Length :
- 18.2626mm
- RoHS Status :
- ROHS3 Compliant
- Published :
- 2002
- Datasheets
- H2155-01
