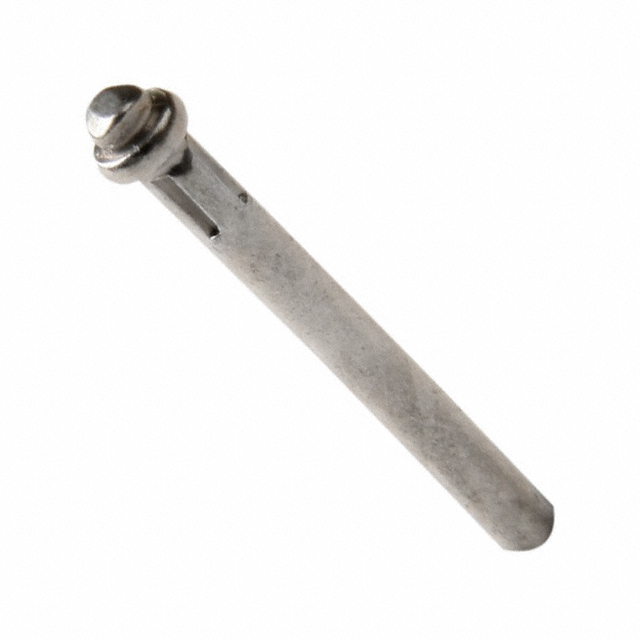

H2157-01
Or copy the link below:
- Mfr.Part #
- H2157-01
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN PC PIN CIRC 0.050DIA TIN
- Stock
- 28,679
- In Stock ：
- 28,679
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- PC Pin, Single Post Connectors
- Contact Material :
- Brass
- Length - Overall :
- 0.504 12.80mm
- Connector Type :
- PCB, Turret
- REACH SVHC :
- No SVHC
- Gender :
- FEMALE
- Terminal Style :
- Single End
- Length - Above Flange :
- 0.449 11.40mm
- Lead Length :
- 9.8mm
- Hole Diameter :
- 1.4986 mm
- Published :
- 2007
- Mounting Hole Diameter :
- 0.055 ~ 0.059 (1.40mm ~ 1.50mm)
- RoHS Status :
- ROHS3 Compliant
- Mounting Type :
- Through Hole
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pin Size - Above Flange :
- 0.050 1.27mm Dia
- Contact Plating :
- Tin
- Insulation :
- Non-Insulated
- Depth :
- 1.21mm
- Terminal Type :
- PC Pin
- Contact Finish Thickness :
- 300.0μin 7.62μm
- Terminal and Terminal Block Type :
- PCB TERMINAL
- Length - Below Flange :
- 0.030 0.76mm
- Packaging :
- Bulk
- Board Thickness :
- 0.063 ~ 0.094 1.60mm ~ 2.39mm
- Radiation Hardening :
- No
- ECCN Code :
- EAR99
- Flange Diameter :
- 0.088 (2.24mm)
- Mount :
- Through Hole
- HTS Code :
- 8536.69.40.40
- Outside Diameter :
- 2.25 mm
- Pbfree Code :
- yes
- Length :
- 12.8016mm
- Termination :
- Swage
- Datasheets
- H2157-01
H2157-01 Documents
H2157-01 datasheet pdf and Terminals - PC Pin, Single Post Connectors product details from Harwin Inc. stock available at Xinshop
