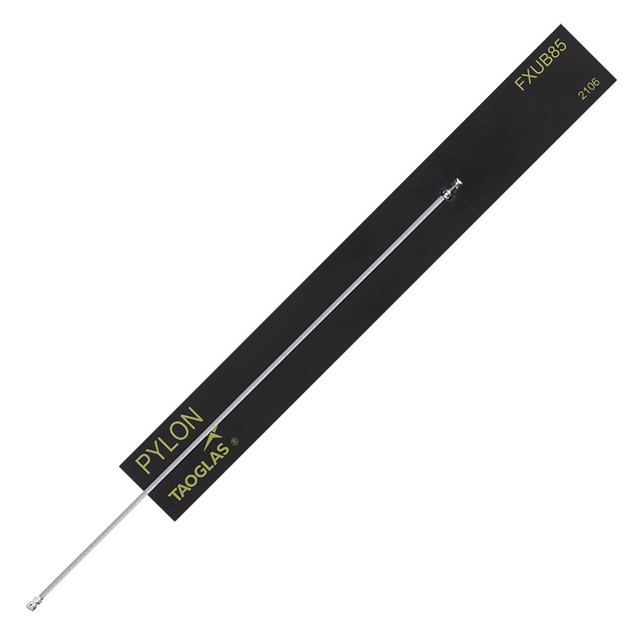

FXUB85.54.0150C

Manufacturer :

Taoglas

Product Category :

RF Antennas

Power - Max :

5 W

VSWR :

-

Height (Max) :

0.012" (0.30mm)

Termination Style :

Connector

RF Family/Standard :

Cellular, WiFi

Termination :

IPEX MHF4L

RoHS :

Details

Height :

0.3 mm

Frequency :

600 MHz to 8 GHz

Polarization :

Linear

Mounting Style :

Adhesive Mount

Manufacturer :

Taoglas

Product Type :

Multiband Antennas

Frequency Group :

Wide Band

Product :

PCB Antennas

Ingress Protection :

-

Mounting Type :

Adhesive

Packaging :

Bulk

Brand :

Taoglas

Length :

163 mm

Product Category :

Antennas

Features :

Cable - 150mm

Power Rating :

5 W

Package :

Bulk

Frequency Range :

617MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz

Maximum Operating Temperature :

+ 85 C

Series :

Pylon

Gain :

2.1dBi, 2.4dBi, 1.9dBi, 1.8dBi, 5.3dBi, 5.6dBi, 4.5dBi

Applications :

3G, 4G, 5G, LTE, Wi-Fi

Antenna Connector Type :

I-PEX MHF 4L

Cable Type :

150 mm RF1.37

Impedance :

50 Ohms

Antenna Type :

Flat Patch

Return Loss :

-6dB, -7dB, -8dB, -11dB, -15dB

Application :

IoT Devices, Connected Devices, UAVs, Autonomous Vehicles, Precision Tracking, Industrial Robotics, Factory Automation, Field Body Sensors, Wearables

Number of Bands :

7

Minimum Operating Temperature :

- 40 C

Type :

Passive Antenna

Product Status :

Active

Cable Length :

150 mm

Frequency (Center/Band) :

788.5MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.5375GHz, 6.525GHz

Center Frequency :

657 MHz, 700 MHz, 800 MHz, 850 MHz, 900 MHz, 1474 MHz, 1700 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2600 MHz, 3500 MHz, 5500 MHz, 5800 MHz, 6000 MHz, 6500 MHz

Subcategory :

Antennas

Width :

21 mm

Style :

I-Pad Flex
