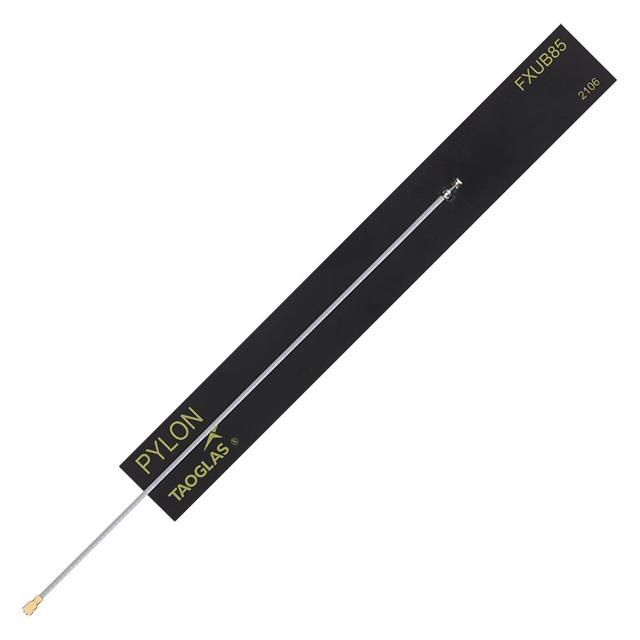

FXUB85.07.0150C

Manufacturer :

Taoglas

Product Category :

RF Antennas

Mounting Style :

Adhesive Mount

Power - Max :

5 W

Termination :

U.FL (UMCC), IPEX MHF1

Cable Length :

150 mm

Packaging :

Bulk

Return Loss :

-6dB, -7dB, -8dB, -11dB, -15dB

Frequency (Center/Band) :

788.5MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.5375GHz, 6.525GHz

Gain :

2.1dBi, 2.4dBi, 1.9dBi, 1.8dBi, 5.3dBi, 5.6dBi, 4.5dBi

Antenna Type :

Flat Patch

Polarization :

Linear

Frequency Range :

617MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz

Applications :

3G, 4G, 5G, LTE

Cable Type :

150 mm RF1.37

Brand :

Taoglas

Product Status :

Active

Application :

IoT Devices, Connected Devices, UAVs, Autonomous Vehicles, Precision Tracking, Industrial Robotics, Factory Automation, Field Body Sensors, Wearables

Product Category :

Antennas

RF Family/Standard :

Cellular

VSWR :

-

Frequency Group :

Wide Band

Minimum Operating Temperature :

- 40 C

Maximum Operating Temperature :

+ 85 C

Impedance :

50 Ohms

Power Rating :

5 W

Ingress Protection :

-

Series :

Pylon

Package :

Bulk

Type :

Passive Antenna

Center Frequency :

657 MHz, 700 MHz, 800 MHz, 850 MHz, 900 MHz, 1474 MHz, 1700 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2600 MHz, 3500 MHz, 5500 MHz, 5800 MHz, 6000 MHz, 6500 MHz

Number of Bands :

7

Termination Style :

Connector

Mounting Type :

Adhesive

Width :

21 mm

Manufacturer :

Taoglas

Product Type :

Multiband Antennas

Product :

PCB Antennas

Height (Max) :

0.012" (0.30mm)

Subcategory :

Antennas

Antenna Connector Type :

I-PEX MHF

RoHS :

Details

Length :

163 mm

Features :

Cable - 150mm

Frequency :

600 MHz to 8 GHz

Height :

0.3 mm

Style :

I-Pad Flex
