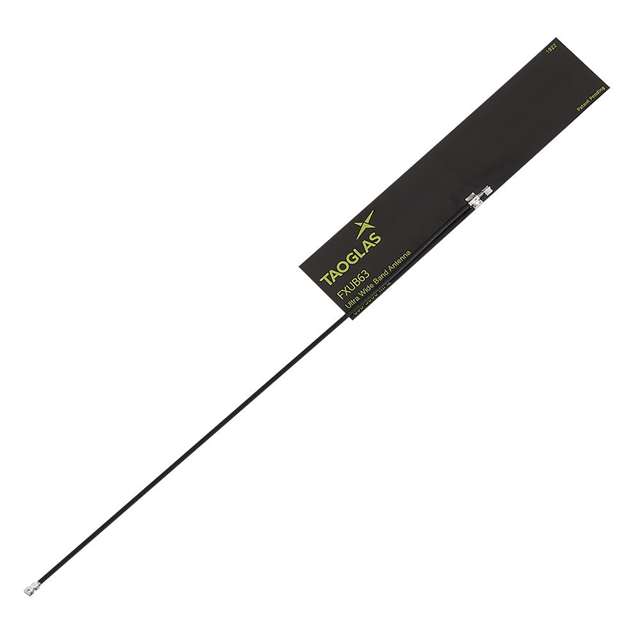

FXUB63.54.0150C

Manufacturer :

Taoglas

Product Category :

RF Antennas

Impedance :

50 Ohms

Antenna Type :

Flat Patch

Type :

Passive Antenna

Brand :

Taoglas

Application :

Cellular Application, ISM Application, Satellite Application

Polarization :

Linear

Power - Max :

5 W

Subcategory :

Antennas

Frequency Group :

Wide Band

RoHS :

Details

Height (Max) :

0.008" (0.20mm)

Manufacturer :

Taoglas

Mounting Type :

Adhesive

Maximum Operating Temperature :

+ 85 C

Number of Bands :

6

Ingress Protection :

-

Style :

I-Bar Flex

Antenna Connector Type :

I-PEX MHF 4L

Product Category :

Antennas

Package :

Bulk

VSWR :

1.8, 1.9, 2, 5.2

Minimum Operating Temperature :

- 40 C

Product :

PCB Antennas

Return Loss :

-3.4dB, -9.7dB, -9.8dB, -10.5dB, -10.7dB

Length :

96 mm

Packaging :

Bulk

Width :

21 mm

Cable Length :

150 mm

Product Status :

Active

Frequency Range :

698MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 1.755GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.69GHz

Mounting Style :

Adhesive Mount

Frequency :

698 MHz to 3 GHz

Center Frequency :

700 MHz, 850 MHz, 900 MHz, 1575 MHz, 1700 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2400 MHz, 2600 MHz

Power Rating :

5 W

Applications :

LTE, ISM, Wi-Fi

RF Family/Standard :

Cellular, General ISM, WiFi

Cable Type :

150 mm RF1.37

Product Type :

Multiband Antennas

Termination :

IPEX MHF4L

Series :

-

Gain :

4.5dBi, 2.33dBi, 4.6dBi, 4.7dBi, 4.4dBi, 4dBi

Height :

0.2 mm

Features :

Cable - 150mm

Frequency (Center/Band) :

829MHz, 1.575GHz, 1.85GHz, 1.9625GHz, 2.45GHz, 2.595GHz

Termination Style :

Connector
