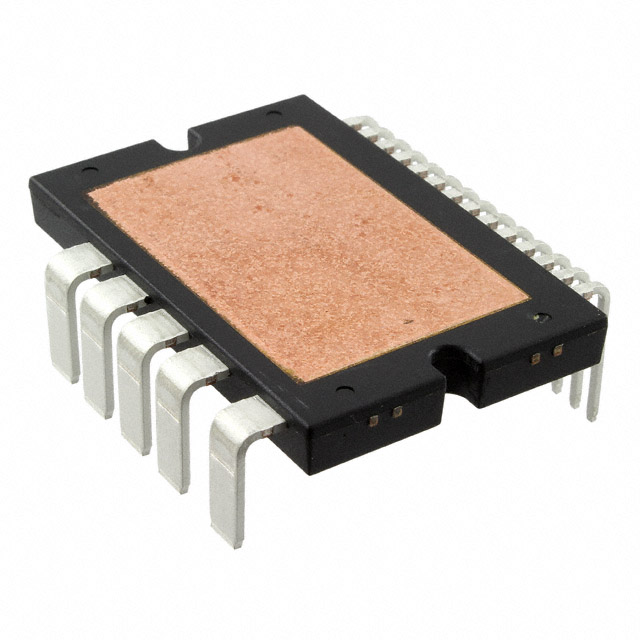

FTCO3V455A1

Manufacturer :

onsemi

Product Category :

Transistors - FETs, MOSFETs - Arrays

HTS Code :

8541.29.00.95

Packaging :

Tube

Drain to Source Voltage (Vdss) :

40V

Number of Pins :

19

FET Feature :

Logic Level Gate

Number of Terminations :

19

ECCN Code :

EAR99

Continuous Drain Current (ID) :

150A

Max Current Rating :

150A

Number of Functions :

1

Factory Lead Time :

4 Weeks

Pbfree Code :

yes

RoHS Status :

ROHS3 Compliant

Gate to Source Voltage (Vgs) :

20V

Height :

5.2mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Terminal Finish :

Tin (Sn)

Max Output Current :

150A

Mount :

Through Hole

Published :

2012

Min Breakdown Voltage :

40V

Package / Case :

19-PowerDIP Module

JESD-609 Code :

e3

Length :

43.8mm

Max Power Dissipation :

115W

Width :

29.2mm

Series :

SPM®

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

FET Type :

6 N-Channel (3-Phase Bridge)

Rds On (Max) @ Id, Vgs :

1.66m Ω @ 80A, 10V

Terminal Position :

Dual

Analog IC - Other Type :

AC MOTOR CONTROLLER

Operating Temperature :

175°C TJ

Lead Free :

Lead Free

Mounting Type :

Through Hole

Weight :

28.206g

Frequency :

20kHz

Radiation Hardening :

No
