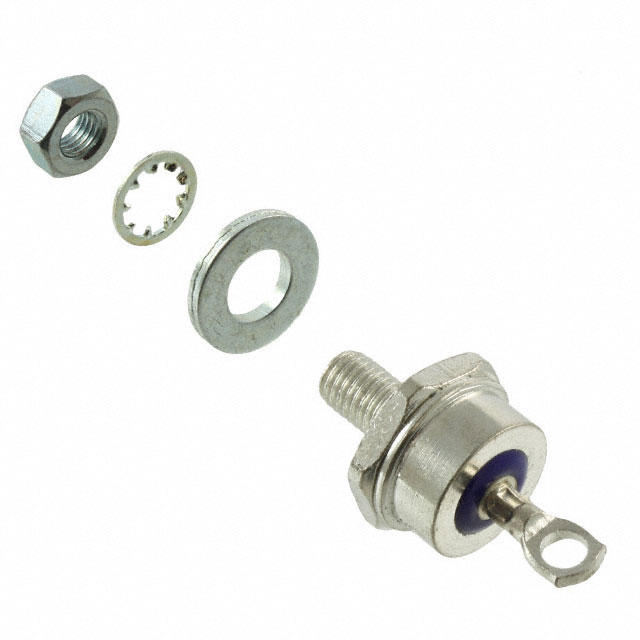

FR85JR05
Or copy the link below:
- Mfr.Part #
- FR85JR05
- Manufacturer
- GeneSiC Semiconductor
- Package / Case
- DO-203AB, DO-5, Stud
- Datasheet
- Download
- Description
- DIODE GEN PURP REV 600V 85A DO5
- Stock
- 19
- In Stock ：
- 19
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- GeneSiC Semiconductor
- Product Category :
- Diodes - Rectifiers - Single
- Mounting Type :
- Chassis, Stud Mount
- Current - Reverse Leakage @ Vr :
- 25μA @ 100V
- Average Rectified Current :
- 85A
- Published :
- 2013
- Recovery Time :
- 500 ns
- Mount :
- Chassis, Stud
- Operating Temperature - Junction :
- -40°C~125°C
- Forward Current :
- 85A
- Lifecycle Status :
- PRODUCTION (Last Updated: 6 months ago)
- Diode Type :
- Standard, Reverse Polarity
- Reverse Voltage :
- 600V
- Voltage - Forward (Vf) (Max) @ If :
- 1.4V @ 85A
- Packaging :
- Bulk
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Max Reverse Voltage (DC) :
- 600V
- Package / Case :
- DO-203AB, DO-5, Stud
- Max Surge Current :
- 1.369kA
- Speed :
- Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time :
- 500 ns
- Max Repetitive Reverse Voltage (Vrrm) :
- 600V
- Factory Lead Time :
- 10 Weeks
- RoHS Status :
- RoHS Compliant
- Peak Reverse Current :
- 25μA
- Datasheets
- FR85JR05
Standard, Reverse Polarity Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 1.4V @ 85A -40°C~125°C 25μA @ 100V Bulk DO-203AB, DO-5, Stud Chassis, Stud Mount
FR85JR05 Overview
Reverse voltage 600V is a reasonable value.For this device, the average rectified current is 85A volts.In this case, forward current can reach 85A.Phase diode rectifier is possible to use a surge current of maximum value 1.369kA.Based on the data chart, the peak reverse is 25μA.
FR85JR05 Features
an average rectified current of 85A volts
the peak reverse is 25μA
FR85JR05 Applications
There are a lot of GeneSiC Semiconductor
FR85JR05 applications of single-phase diode rectifier.
- DC motor control and drives
- Battery chargers
- Welders
- Power converters
- Reverse Polarity Protection
- Ultra High-Speed Switching
- Freewheeling
- Polarity Protection Diode
- Recirculating Diode
- Switching Diode
