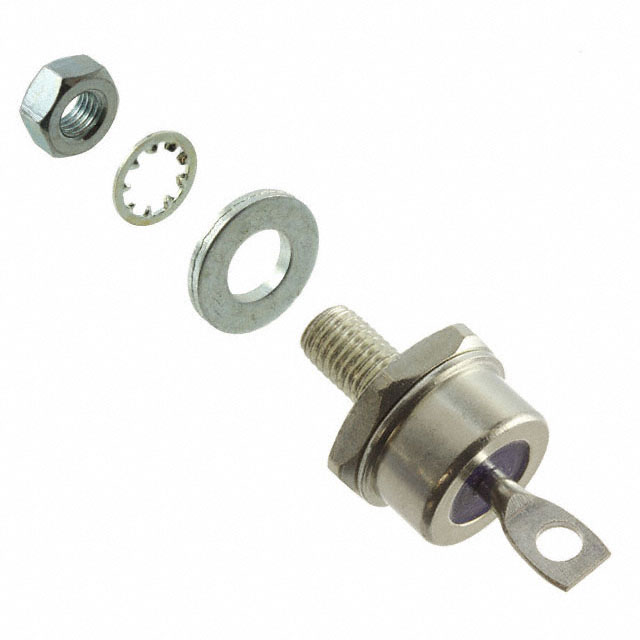

FR85JR02

Manufacturer :

GeneSiC Semiconductor

Product Category :

Diodes - Rectifiers - Single

HTS Code :

8541.10.00.80

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Max Surge Current :

1.369kA

Element Configuration :

Single

Max Forward Surge Current (Ifsm) :

1.369kA

Forward Current :

85A

REACH SVHC :

No SVHC

Number of Pins :

2

Min Operating Temperature :

-40°C

Diode Element Material :

SILICON

Average Rectified Current :

85A

Number of Terminations :

1

Operating Temperature - Junction :

-40°C~125°C

Case Connection :

ANODE

Max Operating Temperature :

125°C

ECCN Code :

EAR99

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Number of Phases :

1

Peak Reverse Current :

25μA

Factory Lead Time :

10 Weeks

Terminal Position :

UPPER

Max Reverse Voltage (DC) :

600V

Pbfree Code :

yes

Reverse Voltage :

600V

Packaging :

Bulk

Voltage - Forward (Vf) (Max) @ If :

1.4V @ 85A

Terminal Form :

Solder Lug

Reverse Recovery Time :

250 ns

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Current - Reverse Leakage @ Vr :

25μA @ 100V

Package / Case :

DO-203AB, DO-5, Stud

Mounting Type :

Chassis, Stud Mount

Forward Voltage :

1.4V

Max Repetitive Reverse Voltage (Vrrm) :

600V

Lifecycle Status :

PRODUCTION (Last Updated: 6 months ago)

Recovery Time :

250 ns

Mount :

Chassis, Stud

Diode Type :

Standard, Reverse Polarity

JESD-30 Code :

O-MUPM-D1

Number of Elements :

1

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

RoHS Compliant
