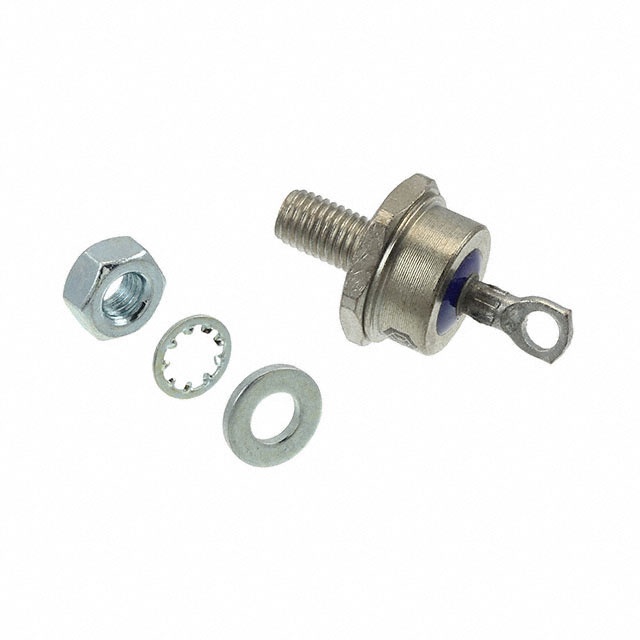

FR85G02

Manufacturer :

GeneSiC Semiconductor

Product Category :

Diodes - Rectifiers - Single

Average Rectified Current :

85A

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Lifecycle Status :

PRODUCTION (Last Updated: 6 months ago)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pbfree Code :

yes

RoHS Status :

RoHS Compliant

Diode Element Material :

SILICON

Reverse Recovery Time :

200 ns

Package / Case :

DO-203AB, DO-5, Stud

Reverse Voltage :

400V

Current - Reverse Leakage @ Vr :

25μA @ 100V

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Forward Voltage :

1.4V

JESD-30 Code :

O-MUPM-D1

ECCN Code :

EAR99

Number of Phases :

1

Max Forward Surge Current (Ifsm) :

1.369kA

Mount :

Chassis, Stud

Published :

2010

Diode Type :

Standard

Max Surge Current :

1.369kA

Terminal Form :

Solder Lug

Max Repetitive Reverse Voltage (Vrrm) :

400V

Element Configuration :

Single

Case Connection :

CATHODE

Peak Reverse Current :

25μA

Packaging :

Bulk

Voltage - Forward (Vf) (Max) @ If :

1.4V @ 85A

Terminal Position :

UPPER

Max Reverse Voltage (DC) :

400V

Mounting Type :

Chassis, Stud Mount

Operating Temperature - Junction :

-40°C~125°C

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Factory Lead Time :

10 Weeks

HTS Code :

8541.10.00.80

Number of Terminations :

1

Number of Elements :

1

Forward Current :

85A

REACH SVHC :

No SVHC

Recovery Time :

200 ns

Number of Pins :

2
