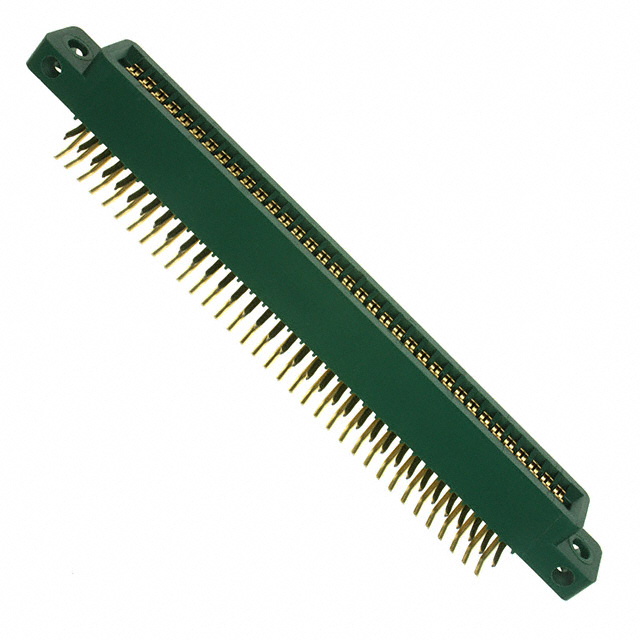

FMC35DRAS
Or copy the link below:
- Mfr.Part #
- FMC35DRAS
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 70POS 0.100
- Stock
- 45,381
- In Stock ：
- 45,381
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Edgeboard Connectors
- Number of Positions :
- 70
- Contact Resistance :
- 10MOhm
- Card Thickness :
- 0.062 1.57mm
- Packaging :
- Tray
- Number of Conductors :
- ONE
- PCB Contact Pattern :
- RECTANGULAR
- JESD-609 Code :
- e4
- Plating Thickness :
- 30μin
- Pbfree Code :
- yes
- Body Breadth :
- 0.4 inch
- Insertion Force-Max :
- 4.448 N
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Flange Feature :
- Side Mount Opening, Unthreaded, 0.125 (3.18mm) Dia
- Card Type :
- Non Specified - Dual Edge
- Color :
- Green
- Number of Rows :
- 2
- Connector Type :
- Full Bellows
- HTS Code :
- 8536.69.40.40
- Rated Current (Signal) :
- 3A
- Body Depth :
- 0.637 inch
- Number of Positions/Bay/Row :
- 35
- Total Number of Contacts :
- 70
- Termination :
- Solder
- Factory Lead Time :
- 3 Weeks
- Lead Free :
- Lead Free
- Pitch :
- 0.100 2.54mm
- Number Of PCB Rows :
- 2
- Material - Insulation :
- Polyphenylene Sulfide (PPS)
- Body/Shell Style :
- Receptacle
- Dielectric Withstanding Voltage :
- 600VDC V
- ECCN Code :
- EAR99
- Mounting Type :
- Through Hole, Right Angle
- Mount :
- Through Hole
- Operating Temperature :
- -65°C~200°C
- Additional Feature :
- NONE
- Insulation Resistance :
- 5000000000Ohm
- Gender :
- FEMALE
- Contact Material :
- Spinodal
- Body Length or Diameter :
- 4.375 inch
- Contact Finish :
- Gold
- Published :
- 2011
- Reliability :
- COMMERCIAL
- Contact Type :
- Full Bellows
- Read Out :
- Dual
- RoHS Status :
- ROHS3 Compliant
- Datasheets
- FMC35DRAS
FMC35DRAS Documents
Female Green 0.100 2.54mm Spinodal 2 Rows Tray Solder Gold 70 Positions Polyphenylene Sulfide (PPS)
FMC35DRAS Overview
Material was packaged in accordance with Tray's specifications.It's recommended to mount type Through Hole, Right Angle.The device is connected via the connector socket Full Bellows.Additional features of this chip include: NONE
FMC35DRAS Features
FMC35DRAS Applications
There are a lot of Sullins Connector Solutions
FMC35DRAS Edgeboard Connectors applications.
- Cell Phones
- Digital Multimeters, PLC's (Programming Logic Controllers)
- RADAR processing, digital oscilloscopes
- CMOS Image sensors for mobile applications
- Medical Instrumentation and medical imaging
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
