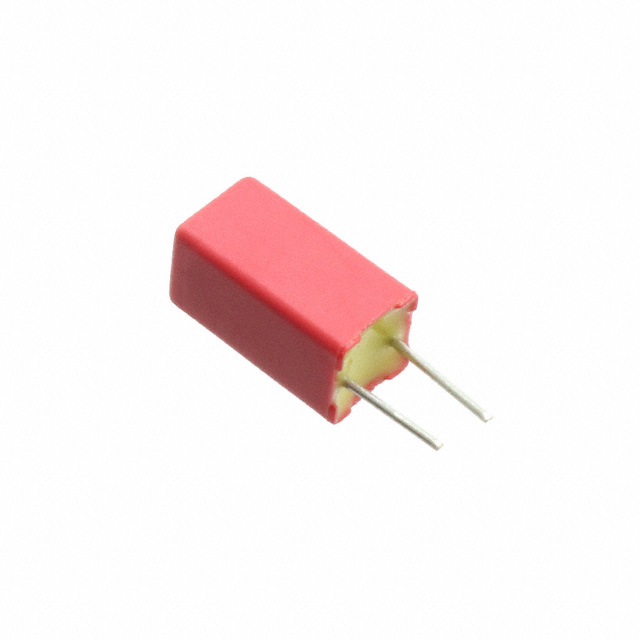

FKP0D014700E00KSSD

Manufacturer :

WIMA

Product Category :

Film Capacitors

Length :

4.6mm

Surface Mount :

No

Termination :

PC Pins

Pbfree Code :

yes

Additional Feature :

AC RATED VOLTAGE(V):63

Tolerance :

±10%

JESD-609 Code :

e3

Size / Dimension :

0.181Lx0.181W 4.60mmx4.60mm

Lead Spacing :

0.098 2.50mm

Operating Temperature :

-55°C~100°C

Terminal Finish :

Tin (Sn)

Terminal Pitch :

2.5mm

Voltage - Rated DC :

100V

Width :

4.6mm

Packaging :

Bulk

HTS Code :

8532.25.00.70

Temperature Coefficient :

-200ppm/Cel ppm/°C

Moisture Sensitivity Level (MSL) :

Not Applicable

Height Seated (Max) :

0.354 9.00mm

Rated (DC) Voltage (URdc) :

100V

Voltage - Rated AC :

63V

Terminal Shape :

Wire

Rated (AC) Voltage (URac) :

63V

Dielectric Material :

Polypropylene (PP)

Number of Terminations :

2

Applications :

High Frequency, Switching; High Pulse, DV/DT

Capacitor Type :

FILM CAPACITOR

ECCN Code :

EAR99

RoHS Status :

ROHS3 Compliant

Package / Case :

Radial

Capacitance :

4700pF

Size Code :

1818
