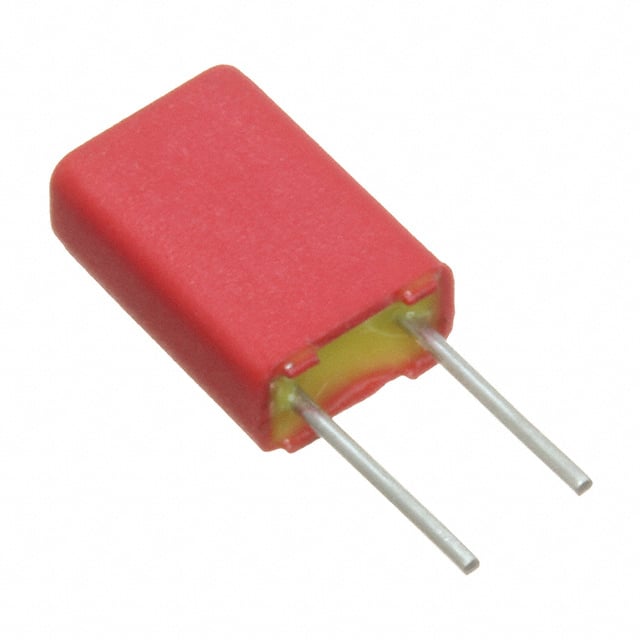

FKP0D002200B00JSSD

Manufacturer :

WIMA

Product Category :

Film Capacitors

Height Seated (Max) :

0.276 7.00mm

Dielectric Material :

Polypropylene (PP)

Capacitor Type :

FILM CAPACITOR

RoHS Status :

ROHS3 Compliant

Size / Dimension :

0.181Lx0.098W 4.60mmx2.50mm

Rated (AC) Voltage (URac) :

63V

Packaging :

Bulk

Termination :

PC Pins

Voltage - Rated DC :

100V

Size Code :

1810

Lead Spacing :

0.098 2.50mm

Additional Feature :

AC RATED VOLTAGE(V):63

Tolerance :

±5%

Terminal Pitch :

2.5mm

Capacitance :

220pF

Temperature Coefficient :

-200ppm/Cel ppm/°C

Terminal Finish :

Tin (Sn)

Width :

2.5mm

Operating Temperature :

-55°C~100°C

Moisture Sensitivity Level (MSL) :

Not Applicable

ECCN Code :

EAR99

Package / Case :

Radial

HTS Code :

8532.25.00.70

Terminal Shape :

Wire

Voltage - Rated AC :

63V

Number of Terminations :

2

Rated (DC) Voltage (URdc) :

100V

Surface Mount :

No

Length :

4.6mm

Applications :

High Frequency, Switching; High Pulse, DV/DT

Pbfree Code :

yes

JESD-609 Code :

e3
