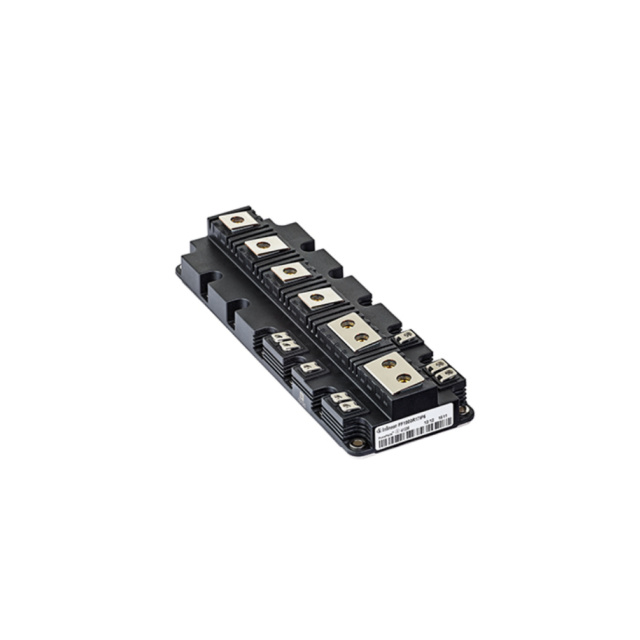

FF1500R12IE5BPSA1
Or copy the link below:
- Mfr.Part #
- FF1500R12IE5BPSA1
- Manufacturer
- Infineon Technologies
- Package / Case
- Module
- Datasheet
- Download
- Description
- IGBT MOD 1200V 1500A 20MW
- Stock
- 174
- In Stock ：
- 174
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Infineon Technologies
- Product Category :
- Transistors - IGBTs - Modules
- Published :
- 2002
- Input :
- Standard
- Vce(on) (Max) @ Vge, Ic :
- 2.15V @ 15V, 1500A
- Current - Collector Cutoff (Max) :
- 5mA
- ECCN Code :
- EAR99
- Voltage - Collector Emitter Breakdown (Max) :
- 1200V
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Mounting Type :
- Chassis Mount
- Operating Temperature :
- -40°C~175°C TJ
- Package / Case :
- Module
- Power - Max :
- 20mW
- Current - Collector (Ic) (Max) :
- 1500A
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- IGBT Type :
- Trench Field Stop
- RoHS Status :
- ROHS3 Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Series :
- PrimePACK™3+
- NTC Thermistor :
- yes
- Input Capacitance (Cies) @ Vce :
- 82nF @ 25V
- Configuration :
- 2 Independent
- Datasheets
- FF1500R12IE5BPSA1
FF1500R12IE5BPSA1 datasheet pdf and Transistors - IGBTs - Modules product details from Infineon Technologies stock available at
