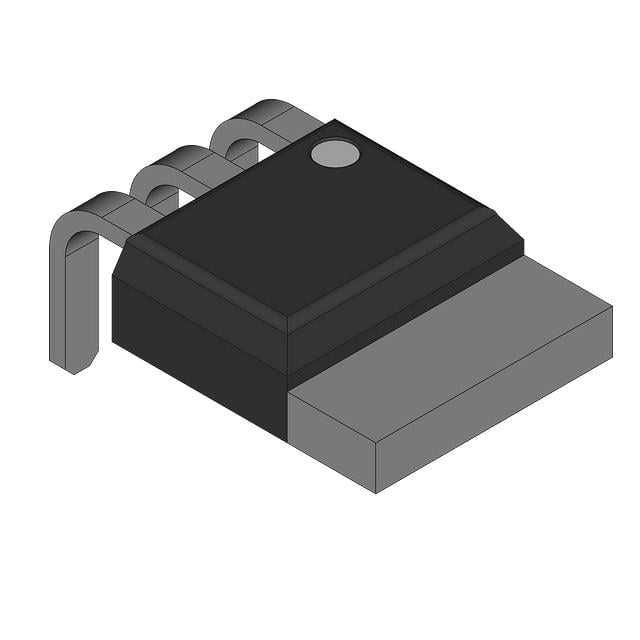

FDU3N40TU

Manufacturer :

Fairchild Semiconductor

Product Category :

Transistors - FETs, MOSFETs - Single

Case Connection :

DRAIN

Power Dissipation-Max :

30W Tc

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

JESD-609 Code :

e3

Number of Elements :

1

Transistor Element Material :

SILICON

Additional Feature :

FAST SWITCHING

Vgs (Max) :

±30V

Published :

2013

Packaging :

Tube

Avalanche Energy Rating (Eas) :

46 mJ

Drive Voltage (Max Rds On,Min Rds On) :

10V

FET Type :

N-Channel

Package / Case :

TO-251-3 Short Leads, IPak, TO-251AA

Drain Current-Max (Abs) (ID) :

2A

Terminal Finish :

Tin (Sn)

Qualification Status :

Not Qualified

Pbfree Code :

yes

Number of Pins :

3

Mount :

Through Hole

Series :

UniFET™

Number of Terminations :

3

Gate Charge (Qg) (Max) @ Vgs :

6nC @ 10V

Height :

7.57mm

Length :

6.8mm

Power Dissipation :

30W

RoHS Status :

ROHS3 Compliant

Operating Temperature :

-55°C~150°C TJ

Factory Lead Time :

4 Weeks

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pulsed Drain Current-Max (IDM) :

8A

Transistor Application :

SWITCHING

Mounting Type :

Through Hole

ECCN Code :

EAR99

Resistance :

3.4Ohm

Element Configuration :

Single

Weight :

343.08mg

Lead Free :

Lead Free

Rise Time :

30ns

Turn-Off Delay Time :

10 ns

Operating Mode :

ENHANCEMENT MODE

Width :

2.5mm

Turn On Delay Time :

10 ns

Lifecycle Status :

ACTIVE (Last Updated: 14 hours ago)

Vgs(th) (Max) @ Id :

5V @ 250μA

Drain to Source Breakdown Voltage :

400V

Continuous Drain Current (ID) :

2A

Rds On (Max) @ Id, Vgs :

3.4 Ω @ 1A, 10V

Fall Time (Typ) :

25 ns

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Current - Continuous Drain (Id) @ 25°C :

2A Tc

Input Capacitance (Ciss) (Max) @ Vds :

225pF @ 25V

Reach Compliance Code :

not_compliant

Gate to Source Voltage (Vgs) :

30V
