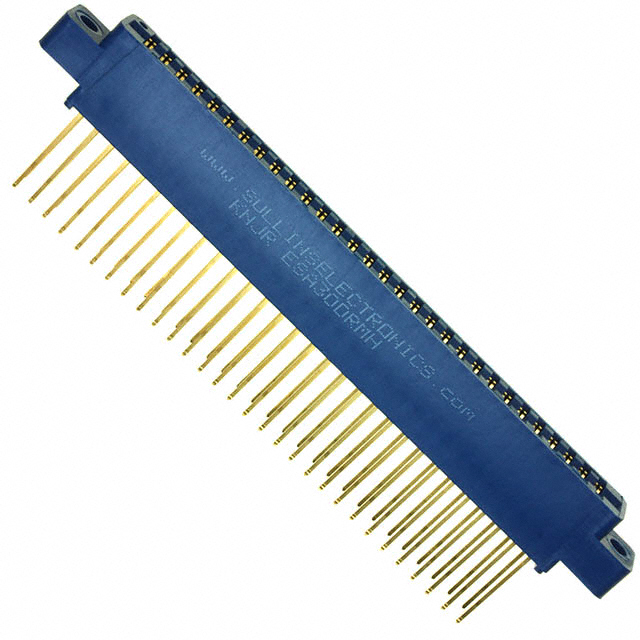

ESA30DRMH
Or copy the link below:
- Mfr.Part #
- ESA30DRMH
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 60POS 0.125
- Stock
- 16,141
- In Stock ：
- 16,141
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Edgeboard Connectors
- Gender :
- FEMALE
- Body Depth :
- 0.61 inch
- Length - Termination :
- 0.56 inch
- Body/Shell Style :
- Receptacle
- Number of Positions :
- 60
- JESD-609 Code :
- e4
- Number of Conductors :
- ONE
- Connector Type :
- Loop Bellows
- Number Of PCB Rows :
- 2
- Contact Resistance :
- 10MOhm
- Number of Rows :
- 2
- Operating Temperature :
- -65°C~125°C
- Contact Finish :
- Gold
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Rated Current (Signal) :
- 3A
- Total Number of Contacts :
- 60
- Lead Free :
- Lead Free
- Pbfree Code :
- yes
- Contact Finish Thickness :
- 10.0μin 0.25μm
- Termination :
- Wire Wrap
- Published :
- 2015
- Material - Insulation :
- Polybutylene Terephthalate (PBT)
- Contact Material :
- Phosphor Bronze
- Color :
- Blue
- Pitch :
- 0.125 3.18mm
- HTS Code :
- 8536.69.40.40
- Reference Standard :
- UL, CSA
- Reliability :
- COMMERCIAL
- Read Out :
- Dual
- Plating Thickness :
- 10μin
- Contact Type :
- Loop Bellows
- Mounting Type :
- Through Hole
- Card Thickness :
- 0.062 1.57mm
- Mount :
- Through Hole
- Dielectric Withstanding Voltage :
- 800VDC V
- Packaging :
- Tray
- PCB Contact Row Spacing :
- 6.35 mm
- ECCN Code :
- EAR99
- Insertion Force-Max :
- 4.448 N
- RoHS Status :
- ROHS3 Compliant
- Factory Lead Time :
- 3 Weeks
- Number of Positions/Bay/Row :
- 30
- PCB Contact Pattern :
- RECTANGULAR
- Body Breadth :
- 0.37 inch
- Body Length or Diameter :
- 4.555 inch
- Insulation Resistance :
- 5000000000Ohm
- Card Type :
- Non Specified - Dual Edge
- Flange Feature :
- Top Mount Opening, Unthreaded, 0.125 (3.18mm) Dia
- Datasheets
- ESA30DRMH
ESA30DRMH Documents
Female Blue 0.125 3.18mm Phosphor Bronze 2 Rows Tray Wire Wrap Gold 60 Positions Polybutylene Terephthalate (PBT)
ESA30DRMH Overview
We packaged the material in accordance with Tray's specifications.The mount type Through Hole is recommended.The device is connected with the connector socket Loop Bellows.
ESA30DRMH Features
ESA30DRMH Applications
There are a lot of Sullins Connector Solutions
ESA30DRMH Edgeboard Connectors applications.
- Scientific instruments
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
- Digital Storage Oscilloscope
- Scientific instruments.
- Music reproduction technology
- Communication Systems
- Data Acquisition Systems
