EP5382QI

Share

Or copy the link below:

Mfr.Part #
EP5382QI
Manufacturer
Altera (Intel)
Package / Case
20-PowerTQFN Module
Datasheet
Download
Description
DC DC CONVERTER 0.6-5.05V
Stock
39,130
In Stock :
39,130

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Altera (Intel)
Product Category :
Topology :
Buck
Input Voltage :
2.4 V to 5.5 V
Surface Mount :
yes
Size / Dimension :
0.20 L x 0.16 W x 0.04 H (5.0mm x 4.0mm x 1.1mm)
Product Type :
Switching Voltage Regulators
Maximum Operating Temperature :
+ 85 C
Mount :
Surface Mount
Type :
Non-Isolated PoL Module
Product Category :
Switching Voltage Regulators
Features :
Remote On/Off, OCP, OTP, SCP, UVLO
Supplier Device Package :
20-QFN (5x4)
Package / Case :
20-PowerTQFN Module
Output Current :
6 A
Series :
Enpirion® 5300
Control Mode :
VOLTAGE-MODE
Additional Feature :
ALSO OPERATES AT 1.8V, 2.5V, 2.7V, 2.8V, 3V, 3.3V AND ALSO IN ADJUSTABLE MODE FROM 0.6V TO 5.05
Control Features :
Enable, Active High
Voltage - Output 2 :
--
Packaging :
Tape and Reel (TR)
Switcher Configuration :
Buck
Applications :
ITE (Commercial)
Max Power Dissipation :
4 W
Operating Temperature :
-40°C ~ 85°C
Mounting Style :
SMD/SMT
Input Voltage-Nom :
3.6 V
Shutdown :
Shutdown
Product :
Voltage Regulators
Terminal Form :
NO LEAD
Min Supply Voltage :
2.4 V
Control Technique :
PULSE WIDTH MODULATION
Voltage - Input (Min) :
2.4V
Max Output Current :
800 mA
Efficiency :
93%
Brand :
Intel / Altera
Current - Output (Max) :
800mA
Terminal Finish :
Matte Tin (Sn)
Switching Frequency :
4 MHz
Terminal Pitch :
0.65 mm
Tradename :
Enpirion
Weight :
77.989538 mg
Width :
4.064 mm
Min Operating Temperature :
-40 °C
Terminal Position :
QUAD
Voltage - Output 3 :
--
Number of Pins :
20
Operating Supply Current :
800 uA
Voltage - Output 1 :
0.6 ~ 5.05 V
Peak Reflow Temperature (Cel) :
260
Schedule B :
8542310000, 8542310000/8542310000/8542310000/8542310000/8542310000
Max Output Power :
20 W
Min Input Voltage :
2.4 V
Height :
1.016 mm
Max Operating Temperature :
85 °C
Package Shape :
RECTANGULAR
Reach Compliance Code :
Compliant
Number of Terminals :
20
Analog IC - Other Type :
SWITCHING REGULATOR
Output Voltage :
5.05 V
Nominal Supply Current :
800 µA
Length :
5.08 mm
Seated Height-Max :
1.15 mm
JESD-30 Code :
R-XQCC-N20
Moisture Sensitivity Level (MSL) :
--
Qualification Status :
Not Qualified
Minimum Operating Temperature :
- 40 C
Max Input Voltage :
5.5 V
Manufacturer :
Intel
RoHS :
Compliant
Number of Functions :
1
Output Current-Max :
0.8 A
Temperature Grade :
Industrial
Voltage - Input (Max) :
5.5V
Subcategory :
PMIC - Power Management ICs
ECCN Code :
EAR99
Radiation Hardening :
No
Switching Frequency-Max :
4000 kHz
Mounting Type :
Surface Mount
HTS Code :
8542.39.00.01
Number of Outputs :
1
JESD-609 Code :
e3
Introducing Altera (Intel) EP5382QI from Chip IC,where excellence meets affordability. This product stands out with its Type:Non-Isolated PoL Module, Package / Case:20-PowerTQFN Module, Operating Temperature:-40°C ~ 85°C, Number of Pins:20, Mounting Type:Surface Mount, EP5382QI pinout, EP5382QI datasheet PDF, EP5382QI amp .Beyond Altera (Intel) EP5382QI ,we also offer F9TYP5E5EANF093, F9TYP5E5EANF094, F9TYP5E5EANF095, Our vast inventory has you covered. Contact us now for immediate solutions.

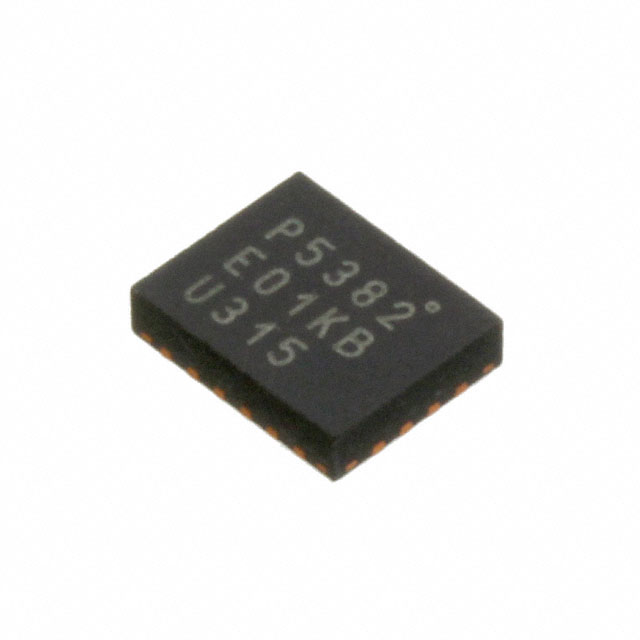

Altera (Intel) EP5382QI
