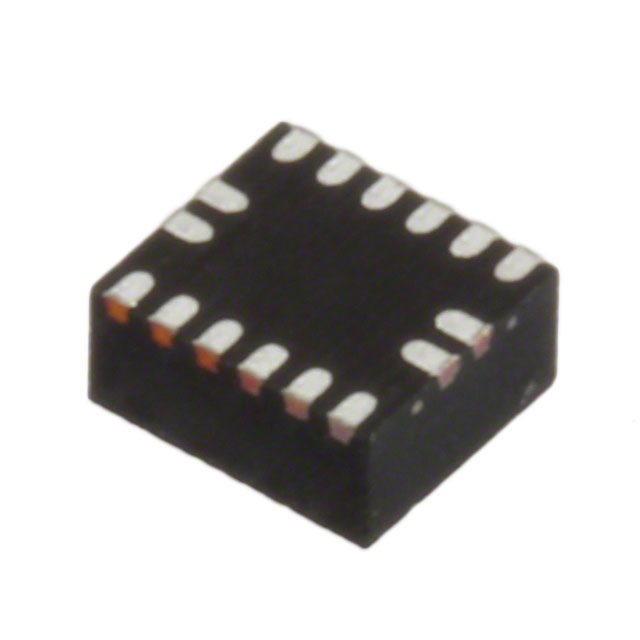

EP5357LUI

Manufacturer :

Altera (Intel)

Product Category :

Series :

Enpirion® 5300

Size / Dimension :

0.10 L x 0.09 W x 0.04 H (2.5mm x 2.3mm x 1.1mm)

Voltage - Output 1 :

0.6 ~ 5.2 V

Max Input Voltage :

5.5 V

Output Voltage :

5.2 V

Voltage - Input (Max) :

5.5V

Moisture Sensitivity Level (MSL) :

--

Mounting Style :

SMD/SMT

Control Features :

Enable, Active High

Voltage - Output 2 :

--

Package / Case :

16-PowerTFQFN Module

Schedule B :

8542310000

Width :

2.286 mm

Length :

2.54 mm

Max Operating Temperature :

85 °C

Mount :

Surface Mount

Voltage - Input (Min) :

2.4V

Features :

Remote On/Off, OCP, OTP, SCP, UVLO

Max Power Dissipation :

3 W

Voltage - Output 3 :

--

Product Category :

Switching Voltage Regulators

Product Type :

Switching Voltage Regulators

Number of Pins :

16

Number of Outputs :

1

Packaging :

Tape and Reel (TR)

Height :

1.016 mm

Subcategory :

PMIC - Power Management ICs

Brand :

Intel / Altera

Applications :

ITE (Commercial)

Min Input Voltage :

2.4 V

Topology :

Buck

Efficiency :

93%

Maximum Operating Temperature :

+ 85 C

Type :

Non-Isolated PoL Module

Load Regulation :

0.48 %/A

Switching Frequency :

5 MHz

Mounting Type :

Surface Mount

Minimum Operating Temperature :

- 40 C

Min Operating Temperature :

-40 °C

Operating Temperature :

-40°C ~ 85°C

Input Voltage :

2.4 V to 5.5 V

Tradename :

Enpirion

Output Current :

600 mA

Current - Output (Max) :

600mA

RoHS :

Compliant

Weight :

19.986414 mg

Shutdown :

Shutdown

Max Output Current :

600 mA

Operating Supply Current :

65 uA

Min Supply Voltage :

2.4 V

Manufacturer :

Intel

Nominal Supply Current :

65 µA

Supplier Device Package :

16-µQFN (2.5x2.25)
