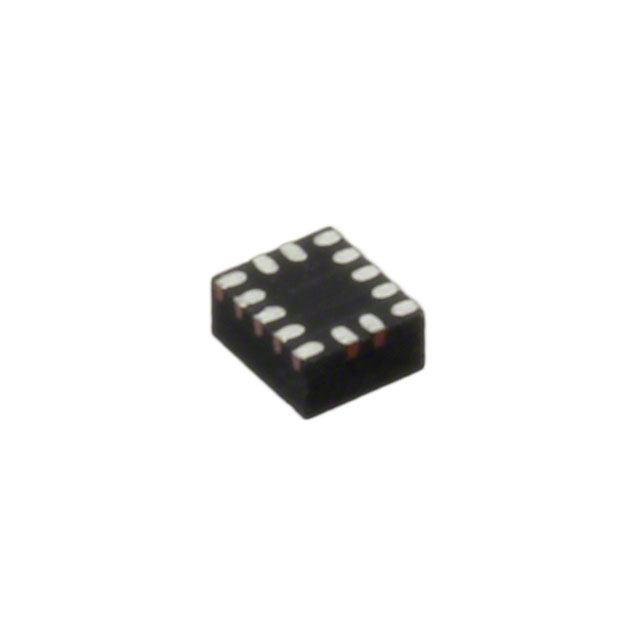

EP5348UI

Manufacturer :

Altera (Intel)

Product Category :

Max Operating Temperature :

85 °C

Current - Output (Max) :

400mA

Terminal Form :

NO LEAD

Surface Mount :

yes

Analog IC - Other Type :

SWITCHING REGULATOR

Topology :

Buck

Length :

2.032 mm

Voltage - Input (Min) :

2.5V

Operating Temperature :

-40°C ~ 85°C

Package / Case :

14-PowerVFQFN Module

Max Output Current :

400 mA

Switcher Configuration :

Buck

JESD-609 Code :

e3

Packaging :

Tape and Reel (TR)

Min Input Voltage :

2.5 V

Output Current-Max :

0.4 A

Mount :

Surface Mount

Height :

1.016 mm

Applications :

ITE (Commercial)

Terminal Finish :

Matte Tin (Sn)

Mounting Style :

SMD/SMT

Control Features :

Enable, Active High

Radiation Hardening :

No

Size / Dimension :

0.08 L x 0.07 W x 0.04 H (2.0mm x 1.8mm x 0.9mm)

Schedule B :

8542310000, 8542310000/8542310000/8542310000/8542310000/8542310000

Voltage - Input (Max) :

5.5V

Terminal Position :

QUAD

ECCN Code :

EAR99

Supplier Device Package :

14-µQFN (2x1.75)

Min Output Voltage :

600 mV

Number of Terminals :

14

Additional Feature :

OPERATES IN ADJUSTABLE MODE FROM 0.6V TO 5.188V

Product Category :

Switching Voltage Regulators

Output Type :

Adjustable

Width :

1.778 mm

Max Output Voltage :

5.188 V

Moisture Sensitivity Level (MSL) :

--

REACH SVHC :

Unknown

Input Voltage-Nom :

3.6 V

Control Technique :

PULSE WIDTH MODULATION

Mounting Type :

Surface Mount

Seated Height-Max :

0.95 mm

Number of Outputs :

1

Brand :

Intel / Altera

Efficiency :

90%

Control Mode :

VOLTAGE-MODE

Terminal Pitch :

0.4 mm

RoHS :

Compliant

Minimum Operating Temperature :

- 40 C

Tradename :

Enpirion

Number of Pins :

14

Series :

Enpirion® 5300

Min Operating Temperature :

-40 °C

Load Regulation :

0.48 %/A

Qualification Status :

Not Qualified

Max Power Dissipation :

2 W

Voltage - Output 3 :

--

Peak Reflow Temperature (Cel) :

260

Max Input Voltage :

5.5 V

Output Current :

400 mA

Voltage - Output 1 :

0.6 ~ 5.188 V

Switching Frequency :

9 MHz

JESD-30 Code :

R-XQCC-N14

Type :

Non-Isolated PoL Module

Features :

Remote On/Off, OCP, OTP, SCP, UVLO

HTS Code :

8542.39.00.01

Manufacturer :

Intel

Package Shape :

RECTANGULAR

Subcategory :

PMIC - Power Management ICs

Product Type :

Switching Voltage Regulators

Maximum Operating Temperature :

+ 85 C

Voltage - Output 2 :

--

Number of Functions :

1

Weight :

10.007382 mg

Temperature Grade :

Industrial

Reach Compliance Code :

Compliant

Output Voltage :

600 mV
