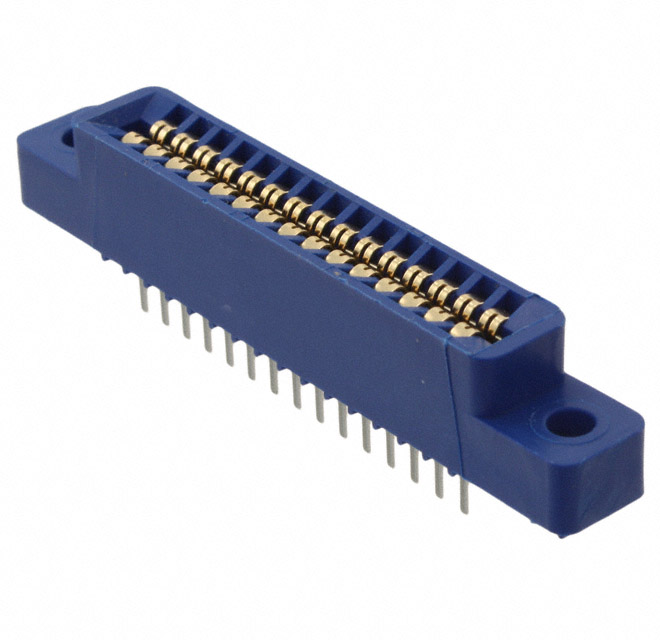

EBC15DRXH
Or copy the link below:
- Mfr.Part #
- EBC15DRXH
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 30POS 0.100
- Stock
- 269
- In Stock ：
- 269
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Edgeboard Connectors
- Termination :
- Solder
- Flange Feature :
- Top Mount Opening, Unthreaded, 0.125 (3.18mm) Dia
- Body Breadth :
- 0.33 inch
- Number of Positions :
- 30
- Card Thickness :
- 0.062 1.57mm
- Gender :
- FEMALE
- Reliability :
- COMMERCIAL
- Number of Positions/Bay/Row :
- 15
- Length :
- 60.3mm
- Number of Rows :
- 2
- Read Out :
- Dual
- Number of Conductors :
- ONE
- RoHS Status :
- ROHS3 Compliant
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Card Type :
- Non Specified - Dual Edge
- Reference Standard :
- UL
- Published :
- 2011
- Contact Type :
- Full Bellows
- Packaging :
- Tray
- Body Depth :
- 0.431 inch
- Contact Material :
- Phosphor Bronze
- Operating Temperature :
- -65°C~125°C
- Material - Insulation :
- Polybutylene Terephthalate (PBT)
- Mounting Type :
- Through Hole
- Color :
- Blue
- Mount :
- Through Hole
- Contact Finish :
- Gold
- Lead Free :
- Lead Free
- Plating Thickness :
- 10μin
- Factory Lead Time :
- 3 Weeks
- Pitch :
- 0.100 2.54mm
- Connector Type :
- Full Bellows
- Pbfree Code :
- yes
- Width :
- 8.38mm
- Housing Material :
- Plastic
- Total Number of Contacts :
- 30
- Contact Finish Thickness :
- 10.0μin 0.25μm
- Flammability Rating :
- UL94 V-0
- Height :
- 10.9mm
- JESD-609 Code :
- e3
- Number Of PCB Rows :
- 2
- Rated Current (Signal) :
- 3A
- Datasheets
- EBC15DRXH
