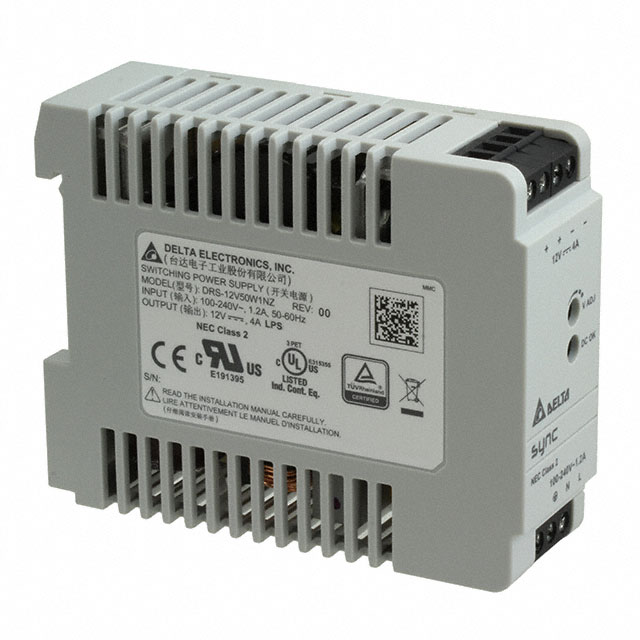

DRS-12V50W1NZ

Manufacturer :

Delta Electronics

Product Category :

Current - Output (Max) :

4A

Length :

89.408mm

Voltage - Input :

85V~264VAC

Factory Lead Time :

2 Weeks

Feature :

Adjustable Output, DC Input Capable, IP20, Load Sharing, Universal Input

Type :

Enclosed

Series :

Sync (50W)

Voltage - Output 1 :

12V

Width :

29.972mm

Mount :

DIN Rail

Height :

74.93mm

Size / Dimension :

3.52Lx1.18W x 2.95 H 89.5mmx30.0mmx75.0mm

Min Operating Temperature :

-20°C

Max Operating Temperature :

70°C

Efficiency :

89%

Max Output Current :

4A

RoHS Status :

ROHS3 Compliant

Voltage - Isolation :

3kV

Approval Agency :

CB, CE, cULus, cURus, TUV

Max Power Dissipation :

50W

Power (Watts) :

50W

Operating Temperature :

-20°C~70°C With Derating

Moisture Sensitivity Level (MSL) :

Not Applicable

Applications :

ITE (Commercial)

Mounting Type :

DIN Rail

Number of Outputs :

1
