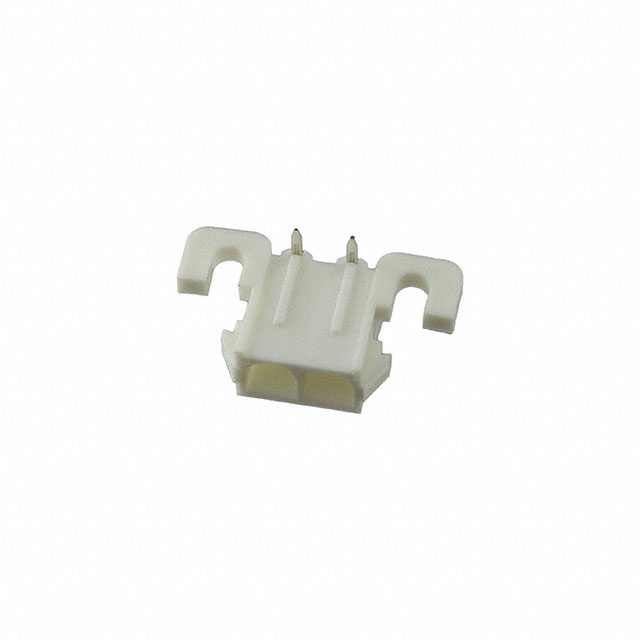

DME-M-02-RA-E
Or copy the link below:
- Mfr.Part #
- DME-M-02-RA-E
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 2POS 6.35MM
- Stock
- 759
- In Stock ：
- 759
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- Headers, Male Pins
- Contact Shape :
- Circular
- Termination :
- Solder
- Number of Rows :
- 1
- Pitch - Mating :
- 0.250 6.35mm
- Packaging :
- Bulk
- Contact Length - Post :
- 0.160 4.06mm
- Connector Type :
- Header
- Factory Lead Time :
- 9 Weeks
- RoHS Status :
- ROHS3 Compliant
- Number of Positions :
- 2
- Operating Temperature :
- -55°C~105°C
- Series :
- DME
- Reliability :
- COMMERCIAL
- Number of Positions Loaded :
- All
- Contact Type :
- Male Pin
- Insulation Color :
- Natural
- Style :
- Board to Cable/Wire
- Feature :
- Mounting Flange
- Dielectric Withstanding Voltage :
- 5000VAC V
- Mounting Type :
- Through Hole, Right Angle
- Voltage - Rated :
- 600VAC
- Shrouding :
- Shrouded - 4 Wall
- Contact Finish - Mating :
- Tin
- Mixed Contacts :
- yes
- Current Rating (Amps) :
- 13A
- Contact Material :
- Phosphor Bronze
- Insulation Height :
- 0.360 9.14mm
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Material Flammability Rating :
- UL94 V-2
- Fastening Type :
- Locking Ramp
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Reference Standard :
- UL
- Body Depth :
- 0.583 inch
- Datasheets
- DME-M-02-RA-E
DME-M-02-RA-E Documents
DME Series 1-Row Header Solder Phosphor Bronze Bulk Through Hole, Right Angle Tin Polyamide (PA66), Nylon 6/6 2-Position Board to Cable/Wire 0.360 9.14mm Height
DME-M-02-RA-E Overview
The product comes in a package of Header.Through Hole, Right Angle is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the DME Series.It is more powerful in many ways due to its Mounting Flange feature.It operates at an operating temperature of -55°C~105°C.
DME-M-02-RA-E Features
DME series
DME-M-02-RA-E Applications
There are a lot of Adam Tech
DME-M-02-RA-E Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
