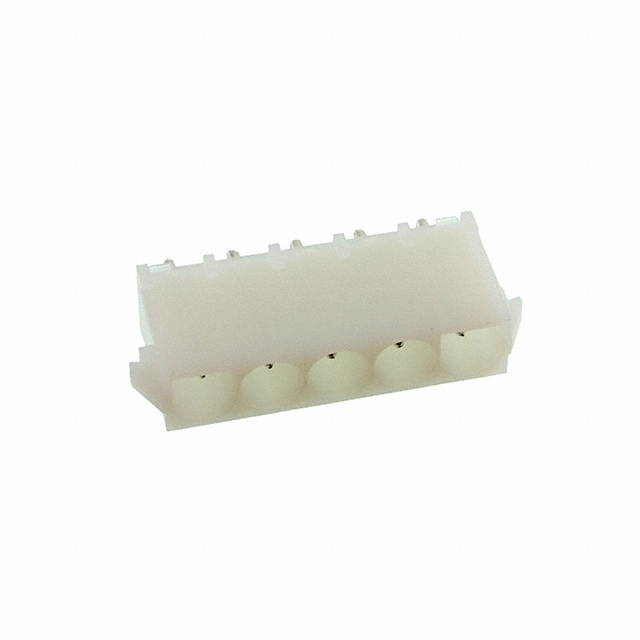

DME-05-S-P-S
Or copy the link below:
- Mfr.Part #
- DME-05-S-P-S
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- 6.35MM PCB HEADER, 5 POSITION
- Stock
- 930
- In Stock ：
- 930
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- Headers, Receptacles, Female Sockets
- Contact Material :
- Phosphor Bronze
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Termination :
- Solder
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Rows :
- 1
- Series :
- DME
- Contact Length - Post :
- 0.177 4.50mm
- Voltage - Rated :
- 600VAC
- Pitch - Mating :
- 0.250 6.35mm
- Applications :
- GENERAL PURPOSE
- Insulation Color :
- Natural
- Style :
- Board to Board
- Contact Type :
- Female Socket
- Number of Positions Loaded :
- All
- Fastening Type :
- Locking Ramp
- RoHS Status :
- ROHS3 Compliant
- Feature :
- Board Guide
- Mounting Type :
- Through Hole
- Packaging :
- Bulk
- Current Rating (Amps) :
- 11A
- Connector Type :
- Receptacle
- Factory Lead Time :
- 9 Weeks
- Contact Finish - Mating :
- Tin
- Contact Shape :
- Circular
- Number of Positions :
- 5
- Operating Temperature :
- -25°C~85°C
- Insulation Height :
- 0.550 13.97mm
- Material Flammability Rating :
- UL94 V-2
- Datasheets
- DME-05-S-P-S
DME-05-S-P-S Documents
1 Rows Receptacle Solder Phosphor Bronze Through Hole Bulk Tin Polyamide (PA66), Nylon 6/6 5 Positions Female Socket
DME-05-S-P-S Overview
Packaging is in the form of Receptacle.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the DME Series.There are a variety of possible applications for this device, including General Purpose.Several benefits come from the Board Guide feature.Devices operate at -25°C~85°C operating temperatures.
DME-05-S-P-S Features
DME series
DME-05-S-P-S Applications
There are a lot of Adam Tech
DME-05-S-P-S Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
