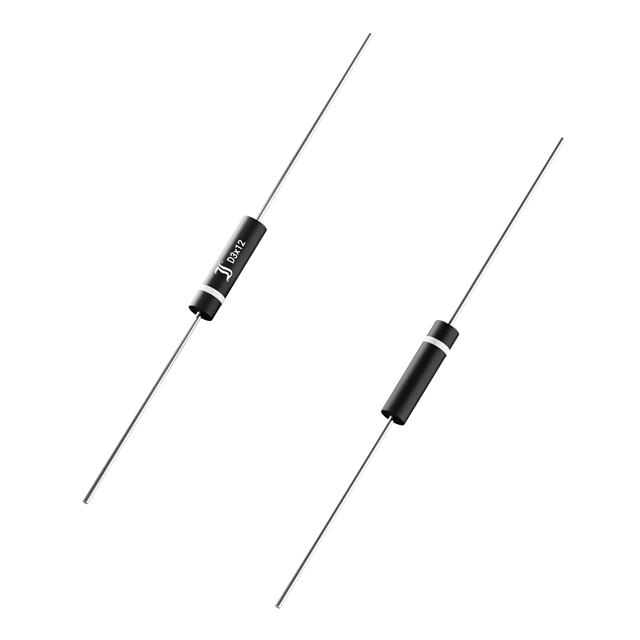

DD1000

Manufacturer :

Diotec Semiconductor

Product Category :

Diodes - Rectifiers - Single

Diameter :

3

Maximum Operating Temperature (°C) :

150

RoHS Status :

Yes with exemptions

Pin Count :

2

Peak Reverse Repetitive Voltage (V) :

10000

Mounting :

Through Hole

Non-rep Pk Forward Current-Max :

5 A

Output Current-Max :

0.02 A

Packaging :

Tape and Reel

Terminal Form :

Wire

Terminal Position :

Axial

Manufacturer :

Diotec Semiconductor AG

Peak Reverse Recovery Time (ns) :

150

Maximum Continuous Forward Current (A) :

0.02

Configuration :

Single

Diode Element Material :

SILICON

Surface Mount :

No

Military :

No

Peak Reverse Current (uA) :

5

Case Connection :

Isolated

Type :

Switching Diode

PCB changed :

2

Number of Elements :

1

Peak Reflow Temperature (Cel) :

260

Reverse Recovery Time-Max :

0.15 μs

Rep Pk Reverse Voltage-Max :

10000 V

Subcategory :

Rectifier Diodes

Qualification Status :

Not Qualified

Package Length :

12

Number of Terminals :

2

Reach Compliance Code :

Compliant

Package Shape :

Round

Minimum Operating Temperature (°C) :

-50

HTS Code :

8541.10.00.70

Peak Non-Repetitive Surge Current (A) :

0.5

Supplier Temperature Grade :

COMMERCIAL

JESD-30 Code :

O-PALF-W2

Diode Type :

RECTIFIER DIODE

ECCN Code :

EAR99

ECCN (US) :

EAR99
