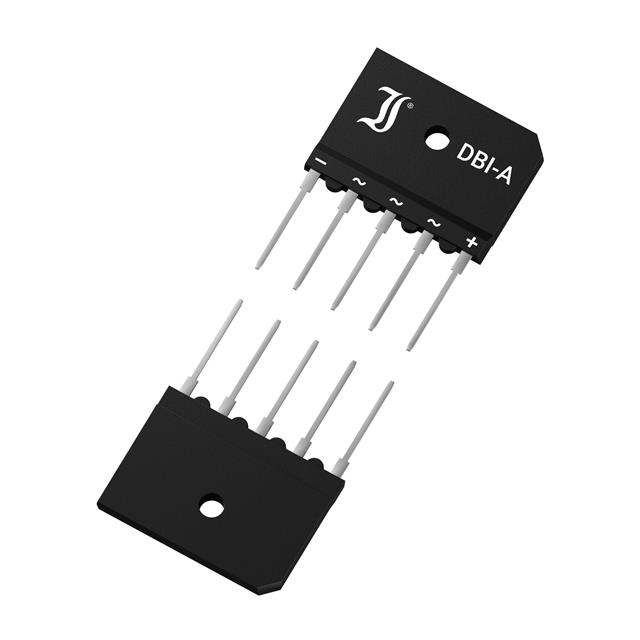

DBI25-16A

Manufacturer :

Diotec Semiconductor

Product Category :

Diodes - Bridge Rectifiers

Maximum Operating Temperature (°C) :

150

Output Current-Max :

4 A

Subcategory :

Bridge Rectifier Diodes

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Minimum Operating Temperature (°C) :

-50

Peak Reverse Recovery Time (ns) :

1500(Typ)

Package Width :

5.5

Additional Feature :

UL RECOGNIZED

Diode Type :

BRIDGE RECTIFIER DIODE

Mounting :

Through Hole

Number of Terminals :

5

Number of Phases :

3

Package Length :

35

Peak Average Forward Current (A) :

4@Ta=50C

HTS Code :

8541.10.00.80

Non-rep Pk Forward Current-Max :

390 A

Package Shape :

RECTANGULAR

Packaging :

Tube

Terminal Position :

Single

Peak Reverse Current (uA) :

5

Configuration :

Single

Pin Count :

4

Package Height :

25

Rep Pk Reverse Voltage-Max :

1600 V

JESD-30 Code :

R-PSFM-T5

Peak Reverse Repetitive Voltage (V) :

1600

Qualification Status :

Not Qualified

Number of Elements :

6

Bridge Type :

Three Phase

Surface Mount :

No

Terminal Form :

THROUGH-HOLE

Case Connection :

Isolated

Peak Non-Repetitive Forward Surge Current (A) :

390

RoHS Status :

Yes with exemptions

Reach Compliance Code :

Unknown

PCB changed :

4

Diode Element Material :

SILICON

Peak RMS Reverse Voltage (V) :

800

Manufacturer :

Diotec Semiconductor AG

Military :

No

ECCN (US) :

EAR99
