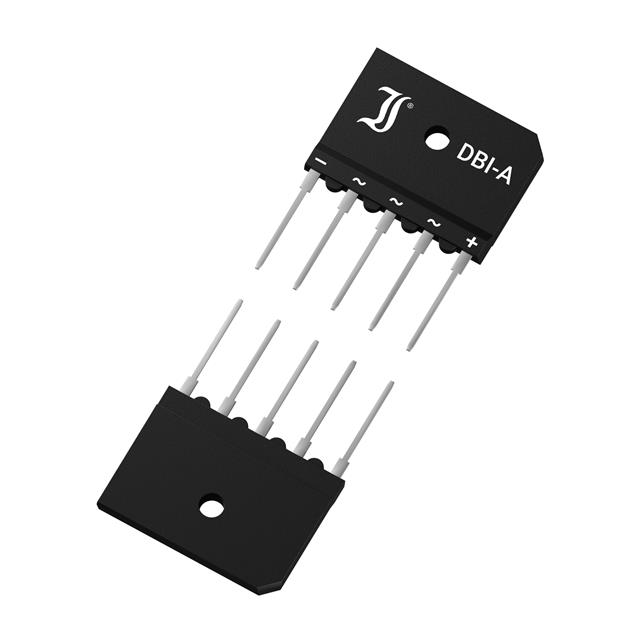

DBI25-08A

Manufacturer :

Diotec Semiconductor

Product Category :

Diodes - Bridge Rectifiers

Package Width :

5.5

Subcategory :

Bridge Rectifier Diodes

ECCN (US) :

EAR99

Number of Terminals :

5

Minimum Operating Temperature (°C) :

-50

Peak Reverse Recovery Time (ns) :

1500(Typ)

Packaging :

Tube

Configuration :

Single

Maximum Operating Temperature (°C) :

150

HTS :

8541.10.00.80

Package Height :

25

Package Shape :

RECTANGULAR

Mounting :

Through Hole

Terminal Form :

THROUGH-HOLE

Surface Mount :

No

JESD-30 Code :

R-PSFM-T5

Reach Compliance Code :

Compliant

Diode Type :

BRIDGE RECTIFIER DIODE

Terminal Position :

Single

Peak Reverse Current (uA) :

5

Non-rep Pk Forward Current-Max :

390 A

Number of Phases :

3

PCB changed :

5

Pin Count :

5

Bridge Type :

Three Phase

Peak RMS Reverse Voltage (V) :

560

Peak Average Forward Current (A) :

4@Ta=50C

Peak Non-Repetitive Forward Surge Current (A) :

390

Package Length :

35

Output Current-Max :

4 A

Peak Reverse Repetitive Voltage (V) :

800

Additional Feature :

UL RECOGNIZED

Manufacturer :

Diotec Semiconductor AG

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

HTS Code :

8541.10.00.80

Rep Pk Reverse Voltage-Max :

800 V

Number of Elements :

6

Supplier Package :

DBI-A

Case Connection :

Isolated

Qualification Status :

Not Qualified

Automotive :

yes

Military :

No

RoHS Status :

Yes with exemptions

Diode Element Material :

SILICON
