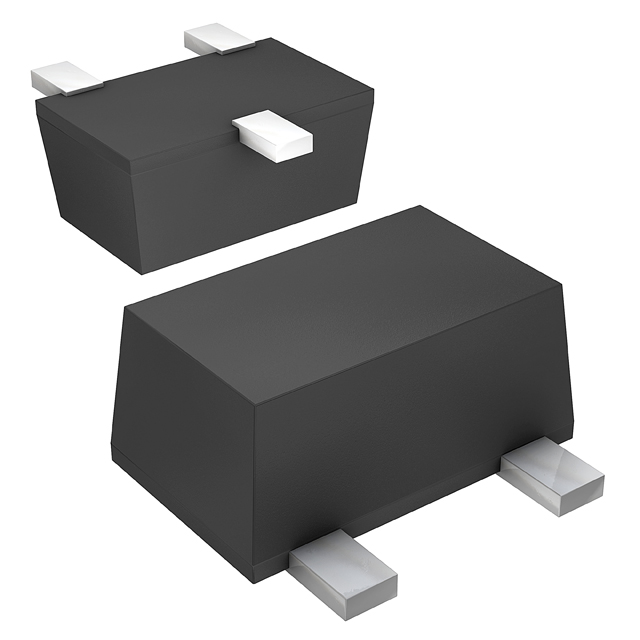

DAN222ZMT2L

Manufacturer :

ROHM Semiconductor

Product Category :

Diodes - Rectifiers - Arrays

Maximum Continuous Forward Current (A) :

0.3

Qualification :

-

Max Surge Current :

4 A

Product Type :

Diodes - General Purpose, Power, Switching

RoHS Status :

RoHS Compliant

Diode Configuration :

Dual Common Cathode

Operating Temp Range :

-55C to 150C

Peak Forward Voltage :

1.2(V)

Manufacturer :

Rohm Semiconductor

Product Category :

Diodes - General Purpose, Power, Switching

Peak Reverse Repetitive Voltage (V) :

80

Packaging :

Tape and Reel

Reverse Recovery Time (trr) :

4 ns

Maximum DC Reverse Voltage (V) :

80

Pin Count :

3

Mounting Type :

Surface Mount

Peak Reverse Recovery Time (ns) :

4

Operating Temperature Classification :

Military

Reverse Recovery Time :

4ns

Minimum Operating Temperature :

- 55 C

Vf - Forward Voltage :

1.2 V

Supplier Package :

VMD

Maximum Power Dissipation (mW) :

150

Peak Non-Repetitive Surge Current (A) :

4

Peak Rep Rev Volt :

80(V)

Number of Elements per Chip :

1

Package Length :

1.2

Peak Reverse Current :

0.1(uA)

Brand :

Rohm Semiconductor

Mounting :

Surface Mount

Minimum Operating Temperature (°C) :

-55

Maximum Operating Temperature (°C) :

150

Product Depth (mm) :

0.8(mm)

Configuration :

Dual Common Cathode

Subcategory :

Diodes and Rectifiers

Rad Hardened :

No

Series :

Automotive, AEC-Q101

Operating Temperature - Junction :

150°C

Repetitive Peak Reverse Voltage :

80V

Package Type :

VMD

Power Dissipation (Max) :

150(mW)

Lead Shape :

Flat

Peak Non-Repetitive Surge Current :

4(A)

Automotive :

No

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Product :

Switching Diodes

RoHS :

Details

Maximum Operating Temperature :

+ 150 C

Type :

Switching Diode

Voltage - Forward (Vf) (Max) @ If :

1.2 V @ 100 mA

Maximum Diode Capacitance (pF) :

3.5

Military :

No

Package Height :

0.5 - 0.1(Max)

Peak Reverse Recovery Time :

4(ns)

Supplier Device Package :

VMD3

Package / Case :

SOT-723-3

Product Status :

Active

Current - Average Rectified (Io) (per Diode) :

100mA

Recovery Time :

4 ns

Speed :

Small Signal =< 200mA (Io), Any Speed

Package Width :

0.8

Voltage - DC Reverse (Vr) (Max) :

80 V

Rectifier Type :

Switching Diode

Mounting Style :

SMD/SMT

Maximum Forward Current :

300(mA)

Standard Package Name :

SOD

Current - Reverse Leakage @ Vr :

100 nA @ 70 V

Diode Type :

Standard

PCB changed :

3

Peak Reverse Current (uA) :

0.1@70V
