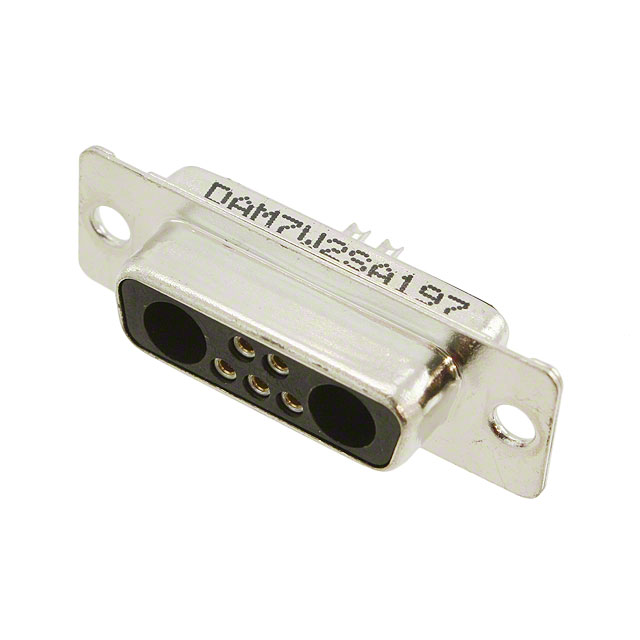

DAM-7W2S-A197
Or copy the link below:
- Mfr.Part #
- DAM-7W2S-A197
- Manufacturer
- ITT Cannon
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 7POS PNL MNT
- Stock
- 317
- In Stock ：
- 317
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ITT Cannon
- Product Category :
- D-Sub Connector Assemblies
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Shell Finish :
- Tin
- Packaging :
- Bulk
- UL Flammability Code :
- 94V-0
- Number of Rows :
- 2
- Dielectric Material :
- Polycyclohexylenedimethylene Terephthalate (PCT)
- Series :
- Combo D®, D*M
- Reliability :
- COMMERCIAL
- Mounting Angle :
- Straight
- Shell Size :
- DA
- DIN Conformance :
- No
- Contact Form :
- --
- Option :
- GENERAL PURPOSE
- Connector Style :
- D-Sub, Combo
- Empty Shell :
- No
- RoHS :
- Details
- Insulation Resistance :
- 10000000000Ohm
- Contact Finish :
- Gold
- RoHS Status :
- RoHS Compliant
- Shell Size, Connector Layout :
- 2 DA A - 7W2
- Filter Feature :
- No
- Pbfree Code :
- yes
- JESD-609 Code :
- e4
- Mounting Style :
- Through Hole
- Wire Gauge :
- 8-26 AWG
- IEC Conformance :
- No
- Current Rating (Amps) :
- 7.5A
- Body Length or Diameter :
- 1.541 inch
- Material Flammability Rating :
- UL94 V-0
- Number of Positions :
- 7 (5 + 2 Coax or Power)
- Reference Standard :
- UL
- Product Status :
- Active
- Contact Type :
- Signal and Coax or Power (Not Included)
- Contact Plating :
- Gold Plated Contacts
- Mounting Option 2 :
- LOCKING
- Ingress Protection :
- --
- Backset Spacing :
- --
- Gender :
- Receptacle
- Total Number of Contacts :
- 7
- Factory Lead Time :
- 21 Weeks
- Package :
- Bulk
- Shell Material, Finish :
- Steel, Tin-Nickel Plated
- Voltage Rating :
- --
- Contact Gender :
- Socket (Female)
- Features :
- Shielded
- Published :
- 2000
- Manufacturer :
- ITT Cannon
- MIL Conformance :
- No
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Product Type :
- D-Sub Tools and Hardware
- Type :
- PLUG
- Termination Style :
- Solder Cup
- Housing Material :
- Polycyclohexylenedimethylene Terephthalate (PCT)
- Color :
- Black
- Contact Material :
- COPPER ALLOY
- Body Breadth :
- 0.494 inch
- Contact Finish Thickness :
- Flash
- Connector Type :
- Receptacle, Female Sockets
- Current Rating :
- 7.5A
- Operating Temperature :
- -55°C~125°C
- Brand :
- ITT Cannon
- Insulation Material :
- Polyester
- Product Category :
- D-Sub Tools and Hardware
- Mounting Type :
- Panel Mount
- Flange Feature :
- Housing/Shell (Unthreaded)
- Feature :
- Shielded
- Termination :
- Solder Cup
- Mixed Contacts :
- yes
- Datasheets
- DAM-7W2S-A197
DAM-7W2S-A197 Documents
Combo D®, D*M Series D-Sub, Combo Receptacle, Female Sockets 7 (5 + 2 Coax or Power)-Position Receptacle Signal and Coax or Power (Not Included) Solder Cup 2 DA A - 7W2 Panel Mount Copper Alloy Gold Steel, Tin-Nickel Plated
DAM-7W2S-A197 Overview
The product comes in a package of Receptacle, Female Sockets.Its mounting type is Panel Mount.Packaging is performed using a Bulk case.It is part of the Combo D®, D*M Series of products.A number of features make it more powerful because of its Shielded feature.There is no operating temperature for the device.
DAM-7W2S-A197 Features
Combo D®, D*M series
DAM-7W2S-A197 Applications
There are a lot of ITT Cannon, LLC
DAM-7W2S-A197 D-Sub Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
