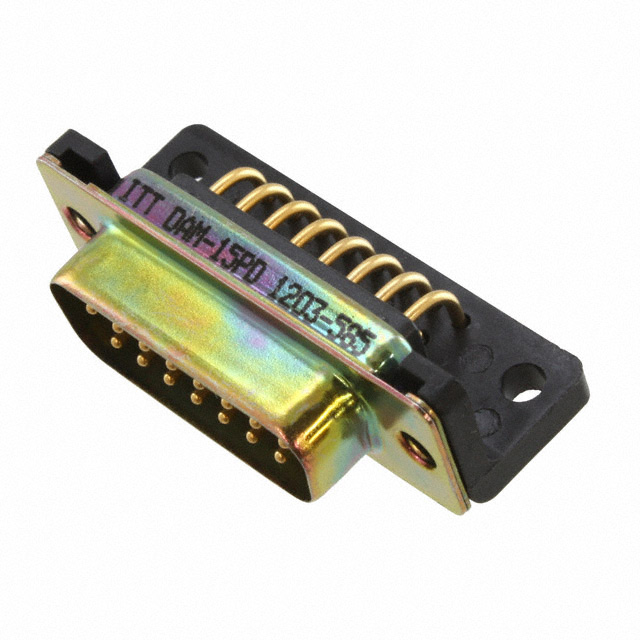

DAM-15P-D

Share

Or copy the link below:

Mfr.Part #
DAM-15P-D
Manufacturer
ITT Cannon
Package / Case
Datasheet
Download
Description
CONN D-SUB PLUG 15POS R/A SLDR
Stock
28
In Stock :
28

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
ITT Cannon
Product Category :
D-Sub Connector Assemblies
Type :
D-Subminiature
Filter Feature :
No
Additional Feature :
PANEL MOUNTABLE
Body/Shell Style :
PLUG
Current Rating :
7.5(A)
UL Flammability Code :
94V-0
Contact Pattern :
STAGGERED
Terminal Pitch :
2.7432 mm
Shell Material :
Steel
Empty Shell :
No
Mixed Contacts :
No
Reliability :
MIL-C-24308
Total Number of Contacts :
15
Number of Contact Rows :
2
JESD-609 Code :
e4
Number of Ports :
1(Port)
Contact Material :
COPPER ALLOY
Body Orientation :
RIGHT ANGLE
Option :
GENERAL PURPOSE
Contact Style :
RND PIN-SKT
Number Of PCB Rows :
2
Shell Plating :
Tin
Insulator Color :
Green
Contact Gender :
Male
Reach Compliance Code :
Compliant
Mounting Option 1 :
HOLE .112-.124
Mating Contact Pitch :
0.109 inch
IEC Conformance :
No
Connector Type :
D SUBMINIATURE CONNECTOR
Contact Resistance :
55 mΩ
Contact Plating :
Gold Over Nickel
Contact Pitch (mm) :
1.37(mm)
Mating Contact Row Spacing :
0.112 inch
Mating Information :
MULTIPLE MATING PARTS AVAILABLE
Number of Terminals :
15
Mounting Type :
BOARD
Factory Lead Time :
17 Weeks
Operating Temp Range :
-55C to 125C
Terminal Length :
0.127 inch
Mounting Style :
RIGHT ANGLE
Termination Type :
Solder
Pbfree Code :
No
Shell Size :
2/A
Body Breadth :
0.494 inch
DIN Conformance :
No
Shell Finish :
Chromate
Termination Method :
Solder
PCB Contact Pattern :
STAGGERED
Rad Hardened :
No
PCB Contact Row Spacing :
2.8448 mm
Plug / Receptacle :
M
Body Depth :
0.395 inch
Number of Contacts :
15(POS)
Contact Finish Termination :
Gold (Au) - with Nickel (Ni) barrier
MIL Conformance :
No
