DAM-15P

Share

Or copy the link below:

Mfr.Part #
DAM-15P
Manufacturer
ITT Cannon
Package / Case
Datasheet
Download
Description
CONN D-SUB PLUG 15POS PNL MNT
Stock
198
In Stock :
198

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
ITT Cannon
Product Category :
D-Sub Connector Assemblies
Mounting Angle :
Straight
Product Status :
Active
Length :
39.14 mm
Number of Contacts :
15
Dielectric Withstanding Voltage :
1700VAC V
Mating Contact Pitch :
0.109 inch
Mount :
Panel, Through Hole
Mixed Contacts :
No
Flange Feature :
Housing/Shell (Unthreaded)
Radiation Hardening :
No
RoHS Status :
Non-RoHS Compliant
Voltage Rating :
--
Moisture Sensitivity Level (MSL) :
Not Applicable
Mounting Type :
Panel Mount
Contact Finish Thickness :
Flash
Features :
--
Pbfree Code :
No
Shell Size :
2 (A)
Max Current Rating :
7.5 A
Contact Design :
PREASSEM CONN
Material Flammability Rating :
UL94 V-0
Packaging :
Bulk
Package :
Bulk
Contact Current Rating :
7.5 A
Number of Ports :
1
Wire Gauge :
--
Brand :
ITT Cannon
Orientation :
Straight
RoHS :
Compliant
Shell Material :
Steel
MIL Conformance :
No
Contact Style :
Pin
Product Type :
D-Sub Connectors - Standard Density
Number of Terminals :
15
Option :
GENERAL PURPOSE
Gender :
PLUG
Connector Type :
Plug, Male Pins
Contact Material :
COPPER ALLOY
Shell Size, Connector Layout :
2 DA A
Total Number of Contacts :
15
Min Operating Temperature :
-55 °C
Mating Information :
MULTIPLE MATING PARTS AVAILABLE
Shell Plating :
Zinc
Plating :
Chromate, Steel
Published :
2011
Backset Spacing :
--
Current Rating :
7.5A
IEC Conformance :
No
Contact Resistance :
55mOhm
Empty Shell :
No
UL Flammability Code :
94V-0
Body Depth :
0.187 inch
Housing Material :
Polycyclohexylenedimethylene Terephthalate (PCT)
Insulation Material :
GLASS FILLED DIALLYL PHTHALATE
Contact Finish :
Gold
Termination :
Solder Cup
Termination Style :
Solder Cup
Body Length or Diameter :
1.541 inch
JESD-609 Code :
e4
Ingress Protection :
--
Operating Temperature :
-55°C~125°C
Connector Style :
D-Sub
Product Category :
D-Sub Standard Connectors
Current Rating (Amps) :
7.5A
Depth :
17.41 mm
Type :
PLUG
Color :
Black
Max Operating Temperature :
125 °C
Series :
D*M
Number of Positions :
15
Contact Gender :
Pin (Male)
Manufacturer :
ITT Cannon
Body Breadth :
0.494 inch
Factory Lead Time :
21 Weeks
Body Material :
Steel
Contact Type :
Signal
Mounting Style :
Wire
Reliability :
COMMERCIAL
Filter Feature :
No
Dielectric Material :
Polycyclohexylenedimethylene Terephthalate (PCT)
Shell Material, Finish :
Steel, Yellow Chromate Plated Zinc
Number of Rows :
2
REACH SVHC :
No SVHC
Contact Plating :
Gold Plated Contacts
DIN Conformance :
No
Contact Form :
Machined
Introducing D-Sub Connector Assemblies ITT Cannon DAM-15P from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Panel Mount, Operating Temperature:-55°C~125°C, Type:PLUG, DAM-15P pinout, DAM-15P datasheet PDF, DAM-15P amp .Beyond D-Sub Connector Assemblies ITT Cannon DAM-15P ,we also offer ICD15S13E4GX00LF, L77SDEH09SOL2RM5, A-DF 25 A/KG-T2S, Our vast inventory has you covered. Contact us now for immediate solutions.

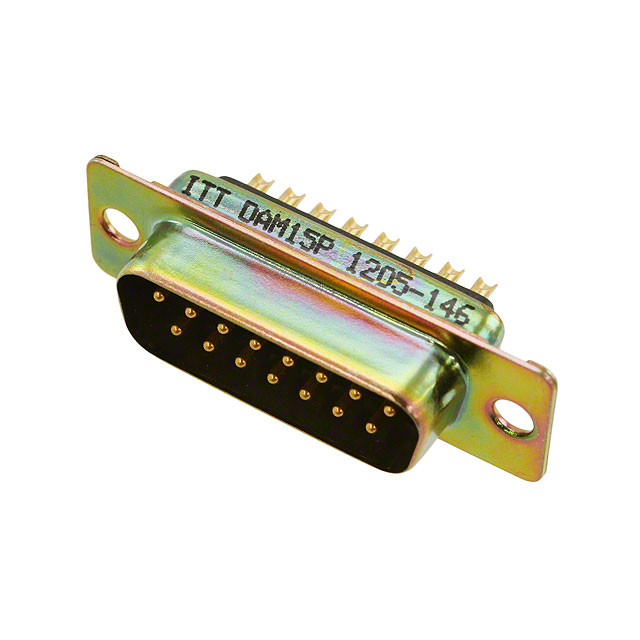

ITT Cannon DAM-15P


D*M Series D-Sub Plug, Male Pins 15-Position Plug Signal Solder Cup 2 DA A Panel Mount Copper Alloy Gold Steel, Yellow Chromate Plated Zinc

DAM-15P Overview


Packaging is Plug, Male Pins.This device has a Panel Mount mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the D*M Series.If the temperature is below 125 °C, it's best to use it.-55 °C is the minimum temperature for this device.A variety of tasks can be performed using its 1 ports.There is a mounting hole at Panel, Through Hole.Devices operate at -55°C~125°C operating temperatures.

DAM-15P Features


D*M series


DAM-15P Applications


There are a lot of ITT Cannon, LLC
DAM-15P D-Sub Connectors applications.


  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
  • Energy efficient lighting (LED)
  • LED municipal outdoor and street lighting
  • All Electrical Machinery
