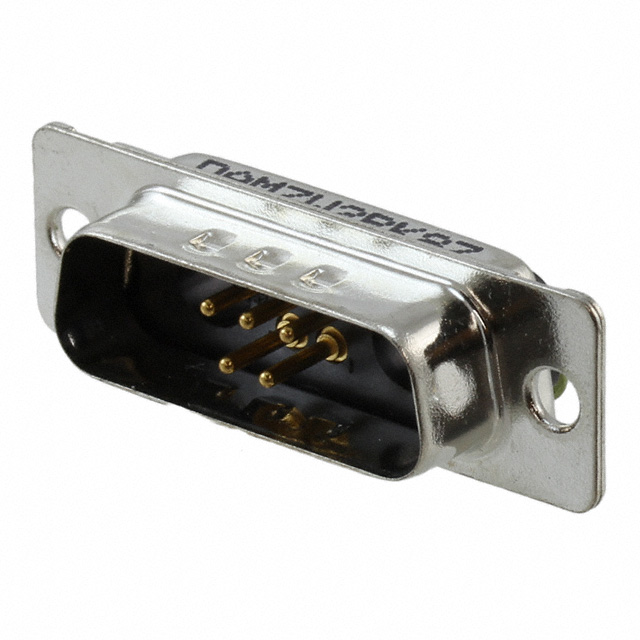

DAM-7W2P-K87
Or copy the link below:
- Mfr.Part #
- DAM-7W2P-K87
- Manufacturer
- ITT Cannon
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB PLUG 7POS PNL MNT
- Stock
- 160
- In Stock ：
- 160
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ITT Cannon
- Product Category :
- D-Sub Connector Assemblies
- Option :
- GENERAL PURPOSE
- Plating :
- Cadmium, Chromate, Gold, Steel
- Number of Terminals :
- 7
- Current Rating (Amps) :
- 7.5A
- Mounting Angle :
- Straight
- Filter Feature :
- No
- Termination :
- Solder Cup
- Ingress Protection :
- --
- Shell Size :
- DA
- Contact Current Rating :
- 7.5A
- Empty Shell :
- No
- DIN Conformance :
- No
- Series :
- Combo D®, D*M
- Number of Contacts :
- 7
- Reliability :
- COMMERCIAL
- Published :
- 2011
- Contact Resistance :
- 55mOhm
- Operating Temperature :
- -55°C~125°C
- Product Category :
- D-Sub Tools and Hardware
- Contact Finish :
- Gold
- Number of Power Positions :
- 2
- Factory Lead Time :
- 21 Weeks
- Number of Conductors :
- ONE
- IEC Conformance :
- No
- Shell Size, Connector Layout :
- 2 DA A - 7W2
- Dielectric Material :
- Polycyclohexylenedimethylene Terephthalate (PCT)
- Mounting Type :
- Panel Mount
- Additional Feature :
- EMI/RFI SHIELDED
- REACH SVHC :
- No SVHC
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Min Operating Temperature :
- -55 °C
- Product Type :
- D-Sub Tools and Hardware
- Features :
- Grounding Indents, Shielded
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Length :
- 39.14mm
- RoHS :
- Compliant
- UL Flammability Code :
- 94V-0
- Housing Material :
- Polyester
- Type :
- PLUG
- Contact Form :
- --
- Shell Material, Finish :
- Steel, Tin-Nickel Plated
- Reference Standard :
- UL
- Body Material :
- Steel
- RoHS Status :
- RoHS Compliant
- Contact Material :
- COPPER ALLOY
- Contact Type :
- Signal and Coax or Power (Not Included)
- Body Breadth :
- 0.494 inch
- Depth :
- 17.41mm
- Max Operating Temperature :
- 125 °C
- Orientation :
- Straight
- Gender :
- Male
- Package :
- Bulk
- Brand :
- ITT Cannon
- Packaging :
- Bulk
- Color :
- Black
- Max Current Rating :
- 7.5A
- Mount :
- Panel
- Mixed Contacts :
- yes
- Connector Style :
- D-Sub, Combo
- Number of Terminations :
- 7
- Wire Gauge :
- 8-26 AWG
- Number of Positions :
- 7 (5 + 2 Coax or Power)
- Contact Gender :
- Pin (Male)
- Feature :
- Grounding Indents, Shielded
- Shell Finish :
- Tin
- Contact Finish Thickness :
- Flash
- Material Flammability Rating :
- UL94 V-0
- Voltage Rating :
- --
- Connector Type :
- Plug, Male Pins
- Number of Ports :
- 1
- Contact Plating :
- Copper, Gold
- Current Rating :
- 7.5A
- Product Status :
- Active
- Total Number of Contacts :
- 7
- Flange Feature :
- Housing/Shell (Unthreaded)
- Termination Style :
- Solder Cup
- Mounting Style :
- Through Hole
- Contact Style :
- Pin
- Rated Current (Signal) :
- 5A
- Number of Rows :
- 2
- Pbfree Code :
- yes
- MIL Conformance :
- No
- Backset Spacing :
- --
- Manufacturer :
- ITT Cannon
- Datasheets
- DAM-7W2P-K87
DAM-7W2P-K87 Documents
Combo D®, D*M Series D-Sub, Combo Plug, Male Pins 7 (5 + 2 Coax or Power)-Position Male Signal and Coax or Power (Not Included) Solder Cup 2 DA A - 7W2 Panel Mount Copper Alloy Gold Steel, Tin-Nickel Plated
DAM-7W2P-K87 Overview
The product is packaged in Plug, Male Pins.Panel Mount is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the Combo D®, D*M Series, it can be found in this category.There are also other features such as EMI/RFI SHIELDED, to name only a few.Temperatures below 125 °C are best for using it.There's a minimum temperature of -55 °C for this device.A variety of tasks can be managed via its 1 ports.With its Grounding Indents, Shielded feature, it is more powerful in many ways.In this case, Panel mounts the part.It has a termination of 7.The device is operating at -55°C~125°C Operating Temperature.
DAM-7W2P-K87 Features
7 basic kinds of terminations
Combo D®, D*M series
DAM-7W2P-K87 Applications
There are a lot of ITT Cannon, LLC
DAM-7W2P-K87 D-Sub Connectors applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
