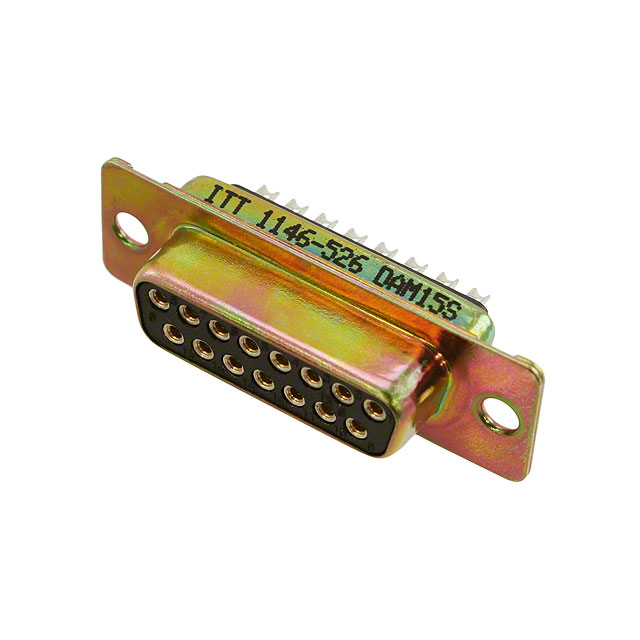

DAM-15S
Or copy the link below:
- Mfr.Part #
- DAM-15S
- Manufacturer
- ITT Cannon
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 15POS PNL MNT
- Stock
- 120
- In Stock ：
- 120
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ITT Cannon
- Product Category :
- D-Sub Connector Assemblies
- Factory Lead Time :
- 18 Weeks
- Voltage - Rated :
- 300V
- Flange Feature :
- Housing/Shell (Unthreaded)
- Operating Temperature :
- -55°C~125°C
- Housing Material :
- Thermoplastic
- Max Operating Temperature :
- 125°C
- Current Rating :
- 7.5A
- Mounting Type :
- Free Hanging (In-Line)
- Height :
- 14mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Material Flammability Rating :
- UL94 V-0
- Shell Material, Finish :
- Steel, Yellow Cadmium Plated
- Number of Ports :
- 1
- Shell Material :
- Steel
- Depth :
- 14.32mm
- Packaging :
- Tray
- Contact Material :
- Phosphor Bronze
- Connector Style :
- D-Sub
- Contact Type :
- Signal
- Contact Plating :
- Gold
- Connector Type :
- Receptacle, Female Sockets
- Current Rating (Amps) :
- 7.5A
- Termination :
- Solder Cup
- Number of Terminations :
- 15
- Shell Size, Connector Layout :
- 2 DA A
- Plating :
- Cadmium
- Orientation :
- Straight
- Dielectric Material :
- Thermoplastic
- Contact Finish :
- Gold
- Mount :
- Free Hanging, Panel
- Pitch :
- 1.37mm
- Number of Positions :
- 15
- RoHS Status :
- RoHS Compliant
- Number of Rows :
- 2
- Length :
- 38.76mm
- Gender :
- FEMALE
- Series :
- DM HE501
- Min Operating Temperature :
- -55°C
- Datasheets
- DAM-15S
DAM-15S Documents
DM HE501 Series D-Sub Receptacle, Female Sockets 15-Position Female Signal Solder Cup 2 DA A Free Hanging (In-Line) Phosphor Bronze Gold Steel, Yellow Cadmium Plated
DAM15S Overview
Packaging is in the form of Receptacle, Female Sockets.The mounting type of the device is Free Hanging (In-Line).A Tray case is used to package the product.A product of the DM HE501 Series, it belongs to the range of products of that series.A temperature below 125°C is best for using it.The device must run at -55°C degrees.There are 1 ports available for a variety of tasks to be performed on it.Free Hanging, Panel represents the mounting point for the part.A 15 termination is present on the chip.-55°C~125°C Operating Temperature is the default operating temperature for the device.
DAM15S Features
15 basic kinds of terminations
DM HE501 series
DAM15S Applications
There are a lot of Amphenol ICC (FCI)
DAM15S D-Sub Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
