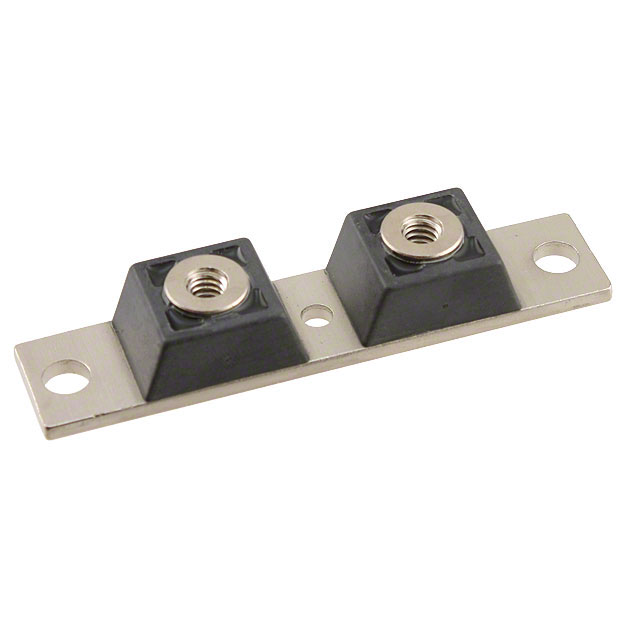

CPT60145

Manufacturer :

Microsemi

Product Category :

Diodes - Rectifiers - Arrays

Number of Elements :

2

Number of Phases :

1

Average Rectified Current :

300A

Min Operating Temperature :

-55°C

Number of Terminations :

2

Application :

Power

Lead Free :

Lead Free

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Voltage - Forward (Vf) (Max) @ If :

550mV @ 300A

Pin Count :

2

Max Operating Temperature :

150°C

ECCN Code :

EAR99

Mount :

Chassis Mount, Screw

Peak Reverse Current :

21mA

HTS Code :

8541.10.00.80

Packaging :

Bulk

Diode Element Material :

SILICON

Mounting Type :

Chassis Mount

JESD-30 Code :

R-XUFM-X2

Forward Voltage :

550mV

Max Reverse Voltage (DC) :

45V

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Radiation Hardening :

No

Terminal Form :

UNSPECIFIED

Number of Pins :

3

Element Configuration :

Common Cathode

RoHS Status :

RoHS Compliant

Current - Reverse Leakage @ Vr :

21mA @ 45V

Terminal Position :

UPPER

Diode Type :

Schottky

Published :

2012

Peak Non-Repetitive Surge Current :

6kA

Max Repetitive Reverse Voltage (Vrrm) :

45V

Forward Current :

600A

Diode Configuration :

1 Pair Common Cathode

Package / Case :

MD3CC
