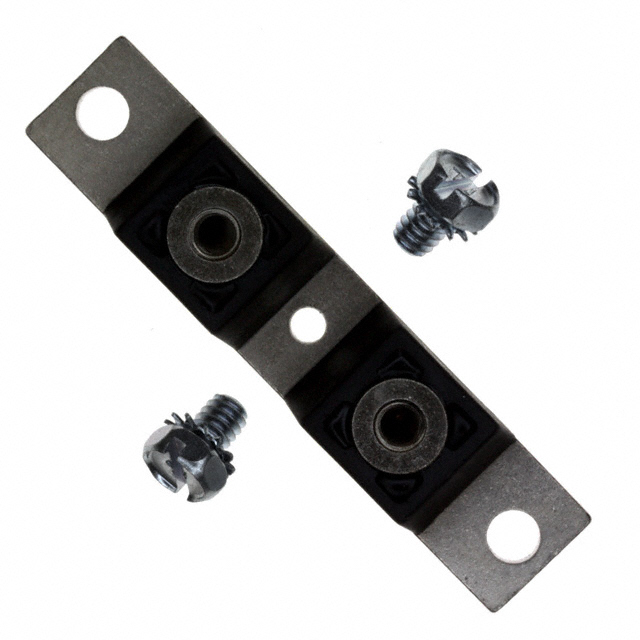

CPT600100

Manufacturer :

Microsemi

Product Category :

Diodes - Rectifiers - Arrays

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Mount :

Chassis Mount, Screw

Element Configuration :

Common Anode

Mounting Type :

Chassis Mount

Number of Terminations :

2

Peak Reverse Current :

8mA

Radiation Hardening :

No

Terminal Form :

UNSPECIFIED

Max Reverse Voltage (DC) :

100V

Diode Configuration :

1 Pair Common Anode

RoHS Status :

RoHS Compliant

Max Operating Temperature :

175°C

Current - Reverse Leakage @ Vr :

8mA @ 100V

Packaging :

Bulk

Peak Non-Repetitive Surge Current :

6kA

Average Rectified Current :

300A

Max Repetitive Reverse Voltage (Vrrm) :

100V

Package / Case :

TO-244AB

Forward Voltage :

850mV

Number of Elements :

2

JESD-30 Code :

R-XUFM-X2

Number of Pins :

3

Pbfree Code :

No

Min Operating Temperature :

-55°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Published :

2014

Diode Element Material :

SILICON

Terminal Position :

UPPER

Number of Phases :

1

Forward Current :

600A

Application :

Power

ECCN Code :

EAR99

Voltage - Forward (Vf) (Max) @ If :

850mV @ 300A

Diode Type :

Schottky

HTS Code :

8541.10.00.80
