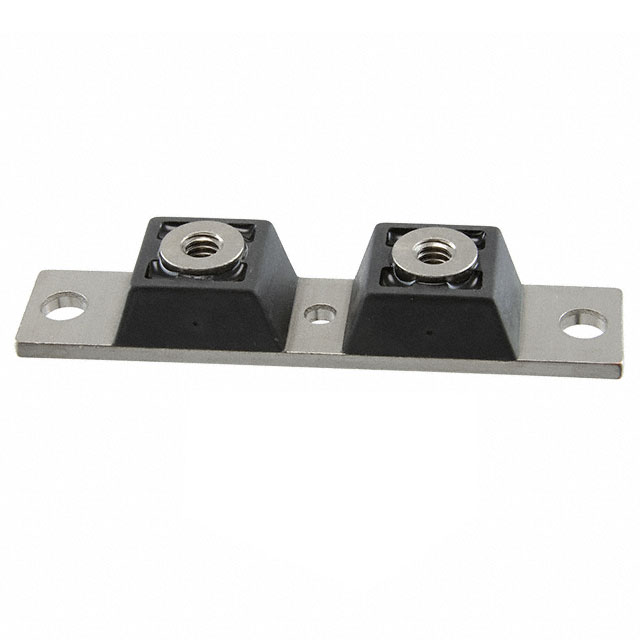

CPT60035

Manufacturer :

Microsemi

Product Category :

Diodes - Rectifiers - Arrays

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Packaging :

Bulk

Min Operating Temperature :

-55°C

ECCN Code :

EAR99

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Terminal Form :

UNSPECIFIED

Lead Free :

Lead Free

Voltage - Forward (Vf) (Max) @ If :

650mV @ 300A

Number of Terminations :

2

Average Rectified Current :

300A

Number of Elements :

2

Pin Count :

2

Current - Reverse Leakage @ Vr :

8mA @ 35V

Terminal Position :

UPPER

JESD-30 Code :

R-XUFM-X2

Mounting Type :

Chassis Mount

Diode Type :

Schottky

Forward Current :

600A

Forward Voltage :

650mV

Peak Non-Repetitive Surge Current :

6kA

Peak Reverse Current :

8mA

Mount :

Chassis Mount, Screw

Diode Element Material :

SILICON

Application :

Power

Number of Pins :

3

Max Operating Temperature :

175°C

Diode Configuration :

1 Pair Common Cathode

RoHS Status :

RoHS Compliant

Published :

2001

Number of Phases :

1

Radiation Hardening :

No

Max Repetitive Reverse Voltage (Vrrm) :

35V

HTS Code :

8541.10.00.80

Max Reverse Voltage (DC) :

35V

Element Configuration :

Common Cathode

Package / Case :

TO-244AB
