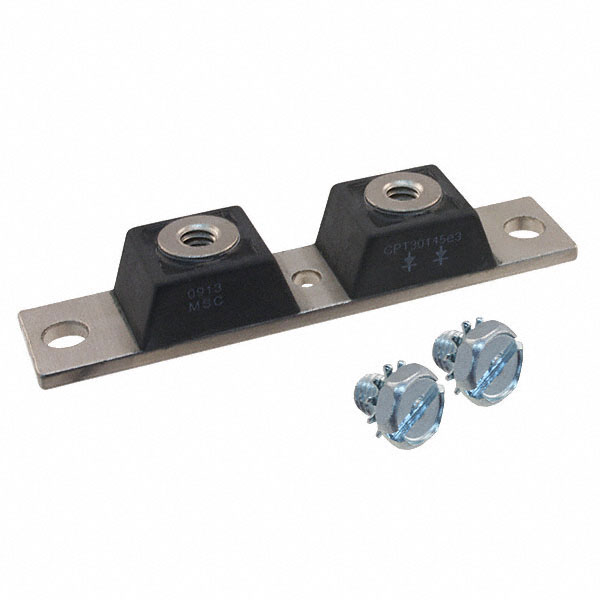

CPT30145

Manufacturer :

Microsemi

Product Category :

Diodes - Rectifiers - Arrays

Peak Reverse Current :

4mA

Max Operating Temperature :

125°C

Element Configuration :

Common Cathode

Average Rectified Current :

150A

Package / Case :

Twin Tower

Number of Terminations :

2

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Number of Pins :

3

Number of Elements :

2

Min Operating Temperature :

-55°C

HTS Code :

8541.10.00.80

Mount :

Chassis Mount, Screw

Diode Element Material :

SILICON

Packaging :

Bulk

RoHS Status :

RoHS Compliant

Forward Voltage :

620mV

Published :

2012

Voltage - Forward (Vf) (Max) @ If :

620mV @ 200A

Max Reverse Voltage (DC) :

45V

Pin Count :

2

Diode Type :

Schottky

Terminal Position :

UPPER

Max Repetitive Reverse Voltage (Vrrm) :

45V

Number of Phases :

1

Forward Current :

300A

ECCN Code :

EAR99

Mounting Type :

Chassis Mount

Radiation Hardening :

No

JESD-30 Code :

R-XUFM-X2

Current - Reverse Leakage @ Vr :

4mA @ 45V

Application :

Power

Peak Non-Repetitive Surge Current :

2kA

Diode Configuration :

1 Pair Common Cathode

Terminal Form :

UNSPECIFIED

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
