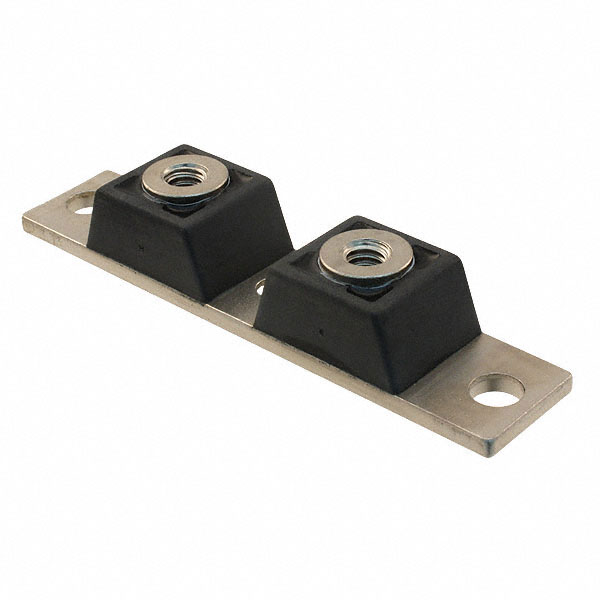

CPT30060

Manufacturer :

Microsemi

Product Category :

Diodes - Rectifiers - Arrays

RoHS Status :

RoHS Compliant

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Packaging :

Bulk

Forward Voltage :

820mV

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Supplier Device Package :

Twin Tower

Voltage - DC Reverse (Vr) (Max) :

60V

Peak Non-Repetitive Surge Current :

2kA

Voltage - Forward (Vf) (Max) @ If :

820mV @ 200A

Number of Pins :

3

Current - Average Rectified (Io) :

150A

Forward Current :

300A

Mount :

Chassis Mount, Screw

Current - Reverse Leakage @ Vr :

4mA @ 60V

Diode Type :

Schottky

Max Reverse Voltage (DC) :

60V

Radiation Hardening :

No

Mounting Type :

Chassis Mount

Max Operating Temperature :

175°C

Max Repetitive Reverse Voltage (Vrrm) :

60V

Min Operating Temperature :

-55°C

Element Configuration :

Common Cathode

Diode Configuration :

1 Pair Common Cathode

Average Rectified Current :

150A

Package / Case :

MD3CC

Peak Reverse Current :

4mA
