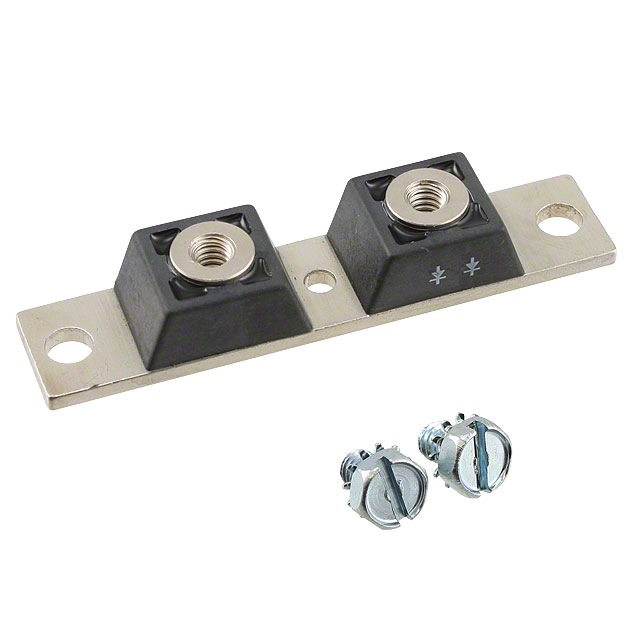

CPT30050

Manufacturer :

Microsemi

Product Category :

Diodes - Rectifiers - Arrays

Max Repetitive Reverse Voltage (Vrrm) :

50V

Number of Pins :

3

Diode Configuration :

1 Pair Common Anode

Mounting Type :

Chassis Mount

Package / Case :

TO-244AB

Peak Reverse Current :

4mA

RoHS Status :

RoHS Compliant

Number of Terminations :

2

Voltage - Forward (Vf) (Max) @ If :

760mV @ 200A

Min Operating Temperature :

-55°C

Published :

2014

Mount :

Chassis Mount, Screw

Terminal Position :

UPPER

Application :

Power

Element Configuration :

Common Anode

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Radiation Hardening :

No

Diode Element Material :

SILICON

JESD-30 Code :

R-XUFM-X2

ECCN Code :

EAR99

Average Rectified Current :

150A

Diode Type :

Schottky

Max Operating Temperature :

175°C

Pin Count :

2

Number of Elements :

2

Peak Non-Repetitive Surge Current :

2kA

Current - Reverse Leakage @ Vr :

4mA @ 50V

Terminal Form :

UNSPECIFIED

HTS Code :

8541.10.00.80

Packaging :

Bulk

Max Reverse Voltage (DC) :

50V

Forward Current :

300A

Number of Phases :

1

Speed :

Fast Recovery =< 500ns, > 200mA (Io)
