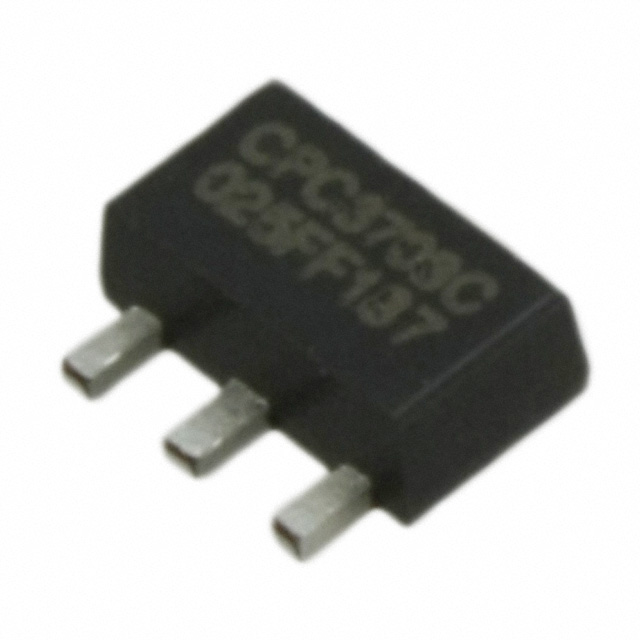

CPC3703CTR

Manufacturer :

Littelfuse

Product Category :

Transistors - FETs, MOSFETs - Single

Weight :

130.492855mg

Rds On Max :

4 Ω

Factory Lead Time :

8 Weeks

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Input Capacitance :

350pF

Product Status :

Active

Surface Mount :

yes

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Terminal Finish :

Matte Tin (Sn)

Supplier Device Package :

SOT-89-3

Schedule B :

8541290080

ECCN Code :

EAR99

FET Technology :

METAL-OXIDE SEMICONDUCTOR

Max Power Dissipation :

1.6 W

Max Operating Temperature :

125°C

Operating Temperature :

-55°C~125°C TA

Number of Terminals :

3

Terminal Form :

Flat

Polarity/Channel Type :

N-Channel

Continuous Drain Current (ID) :

360mA

Transistor Element Material :

SILICON

Operating Mode :

Depletion Mode

Power Dissipation-Max (Abs) :

1.6 W

Power Dissipation-Max :

1.1W Ta

Lead Free :

Lead Free

Subcategory :

FET General Purpose Power

Element Configuration :

Single

Input Capacitance (Ciss) (Max) @ Vds :

350pF @ 25V

Drain to Source Resistance :

4Ohm

Qualification Status :

Not Qualified

JESD-609 Code :

e3

Pulsed Drain Current-Max (IDM) :

0.6 A

Min Operating Temperature :

-55°C

Peak Reflow Temperature (Cel) :

260

RoHS :

Compliant

Transistor Application :

SWITCHING

Mounting Type :

Surface Mount

Drain Current-Max (Abs) (ID) :

0.36 A

Gate to Source Voltage (Vgs) :

20V

Radiation Hardening :

No

Base Product Number :

CPC3703

Power Dissipation (Max) :

1.1W (Ta)

Vgs (Max) :

±15V

Manufacturer :

IXYS Integrated Circuits Division

Configuration :

SINGLE WITH BUILT-IN DIODE

DS Breakdown Voltage-Min :

250 V

Number of Pins :

4

FET Feature :

Depletion Mode

FET Type :

N-Channel

Pin Count :

3

Current - Continuous Drain (Id) @ 25°C :

360mA Ta

Mount :

Surface Mount

Packaging :

Tape and Reel (TR)

Pbfree Code :

yes

Drain-source On Resistance-Max :

4 Ω

Drive Voltage (Max Rds On,Min Rds On) :

0V

Series :

--

Terminal Position :

Single

Additional Feature :

High Reliability

Power Dissipation :

1.1W

RoHS Status :

ROHS3 Compliant

Case Connection :

DRAIN

Vgs(th) (Max) @ Id :

--

Package / Case :

TO-243AA

Reach Compliance Code :

Unknown

Rds On (Max) @ Id, Vgs :

4Ohm @ 200mA, 0V

Published :

2011

Package Shape :

RECTANGULAR

Drain to Source Voltage (Vdss) :

250V

Drain to Source Breakdown Voltage :

250V

Number of Elements :

1

Number of Channels :

1

JESD-30 Code :

R-PSSO-F3
