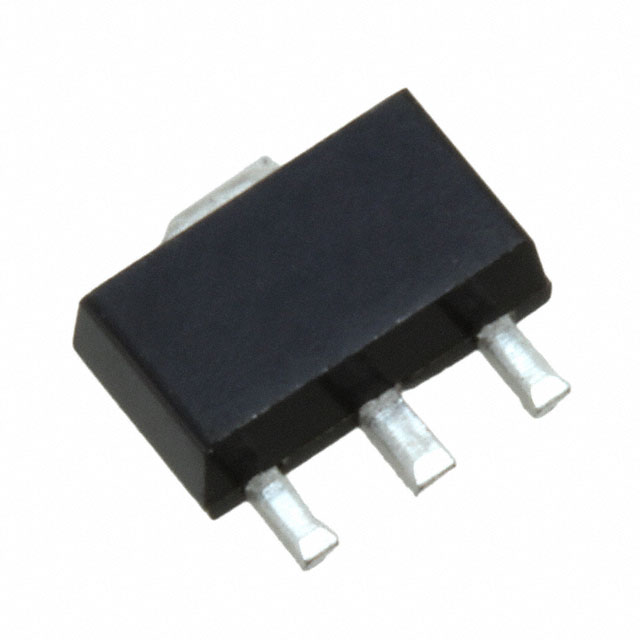

CPC3701CTR

Manufacturer :

Littelfuse

Product Category :

Transistors - FETs, MOSFETs - Single

Element Configuration :

Single

Number of Terminals :

3

Max Operating Temperature :

150°C

Weight :

130.492855mg

Mount :

Surface Mount

Factory Lead Time :

8 Weeks

Rds On Max :

1 Ω

Rds On (Max) @ Id, Vgs :

1Ohm @ 300mA, 0V

JESD-30 Code :

R-PSSO-F3

Drain to Source Resistance :

1Ohm

Terminal Form :

Flat

Drain to Source Voltage (Vdss) :

60V

Vgs (Max) :

±15V

Turn-Off Delay Time :

50 ns

Mounting Type :

Surface Mount

Transistor Application :

SWITCHING

Polarity/Channel Type :

N-Channel

Power Dissipation (Max) :

1.1W (Ta)

Reach Compliance Code :

Compliant

Number of Elements :

1

Current - Continuous Drain (Id) @ 25°C :

--

Product Status :

Active

FET Type :

N-Channel

Gate to Source Voltage (Vgs) :

15V

Max Power Dissipation :

1.1 W

Number of Pins :

4

Series :

--

Surface Mount :

yes

Packaging :

Tape and Reel (TR)

RoHS :

Compliant

Power Dissipation-Max :

1.1W Ta

DS Breakdown Voltage-Min :

60 V

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Min Operating Temperature :

-55°C

Operating Mode :

Depletion Mode

Operating Temperature :

-55°C~125°C TJ

FET Technology :

METAL-OXIDE SEMICONDUCTOR

Base Product Number :

CPC3701

Turn On Delay Time :

70 ns

RoHS Status :

ROHS3 Compliant

FET Feature :

Depletion Mode

Manufacturer :

IXYS Corporation

Rise Time :

70ns

ECCN Code :

EAR99

Fall Time (Typ) :

150 ns

Drain-source On Resistance-Max :

1 Ω

Transistor Element Material :

SILICON

Configuration :

SINGLE WITH BUILT-IN DIODE

Published :

2013

Package / Case :

TO-243AA

Drive Voltage (Max Rds On,Min Rds On) :

0V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Vgs(th) (Max) @ Id :

--

Lead Free :

Lead Free

Package Shape :

RECTANGULAR

Turn-On Delay Time :

70 ns

Continuous Drain Current (ID) :

600mA

Supplier Device Package :

SOT-89

Terminal Position :

Single

Case Connection :

DRAIN
