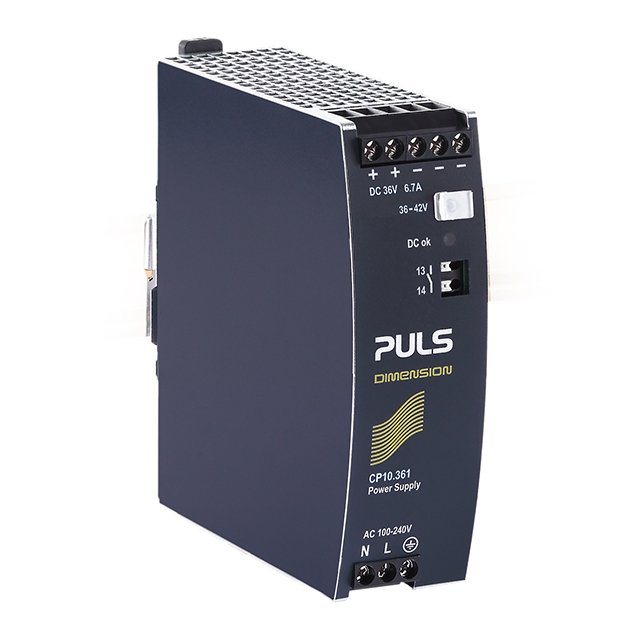

CP10.361

Manufacturer :

PULS

Product Category :

Feature :

Adjustable Output, DC Input Capable, PFC, Universal Input

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Operating Temperature :

-25°C~70°C With Derating

Number of Outputs :

1

Series :

DIMENSION CP (240W)

Terminal Form :

UNSPECIFIED

Total Power Output-Max :

240W

Voltage - Input :

100V~240VAC

Current - Output (Max) :

6.7A

Power (Watts) :

240W

Moisture Sensitivity Level (MSL) :

Not Applicable

Number of Terminations :

11

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Factory Lead Time :

2 Weeks

Applications :

Hazardous Locations, ITE (Commercial)

Approval Agency :

CB, cCSAus, CE, cULus, cURus, PCT

Voltage - Output 1 :

36V

Input Voltage-Nom :

100V

Surface Mount :

No

Terminal Position :

UNSPECIFIED

Size / Dimension :

4.61Lx1.54W x 4.88 H 117.0mmx39.0mmx124.0mm

Mounting Type :

DIN Rail

Trim/Adjustable Output :

yes

Pbfree Code :

yes

Number of Functions :

1

Voltage - Isolation :

3kV

RoHS Status :

RoHS Compliant

Output Voltage :

36V

Efficiency :

95.1%

Type :

Enclosed
