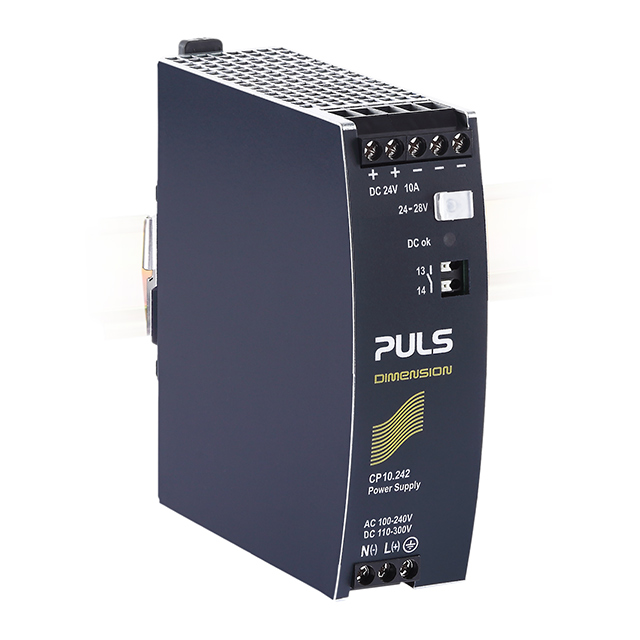

CP10.242

Manufacturer :

PULS

Product Category :

RoHS Status :

RoHS Compliant

Voltage - Input :

85V~264VAC

Power (Watts) :

240W

Voltage - Isolation :

3kV

Surface Mount :

No

Type :

Enclosed

Trim/Adjustable Output :

yes

ECCN Code :

EAR99

Terminal Position :

UNSPECIFIED

Moisture Sensitivity Level (MSL) :

Not Applicable

Number of Functions :

1

Number of Terminations :

11

Applications :

Hazardous Locations, ITE (Commercial)

Total Power Output-Max :

240W

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Terminal Form :

UNSPECIFIED

Pbfree Code :

yes

Input Voltage-Nom :

110V

Number of Outputs :

1

Output Voltage :

24V

Factory Lead Time :

2 Weeks

Feature :

Adjustable Output, DC Input Capable, PFC, Universal Input

Mounting Type :

DIN Rail

Voltage - Output 1 :

24V

Approval Agency :

CB, cCSAus, CE, cULus, cURus, PCT

Series :

DIMENSION CP (240W)

Size / Dimension :

4.61Lx1.54W x 4.88 H 117.0mmx39.0mmx124.0mm

Current - Output (Max) :

10A

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Operating Temperature :

-10°C~70°C With Derating

Efficiency :

95.2%
